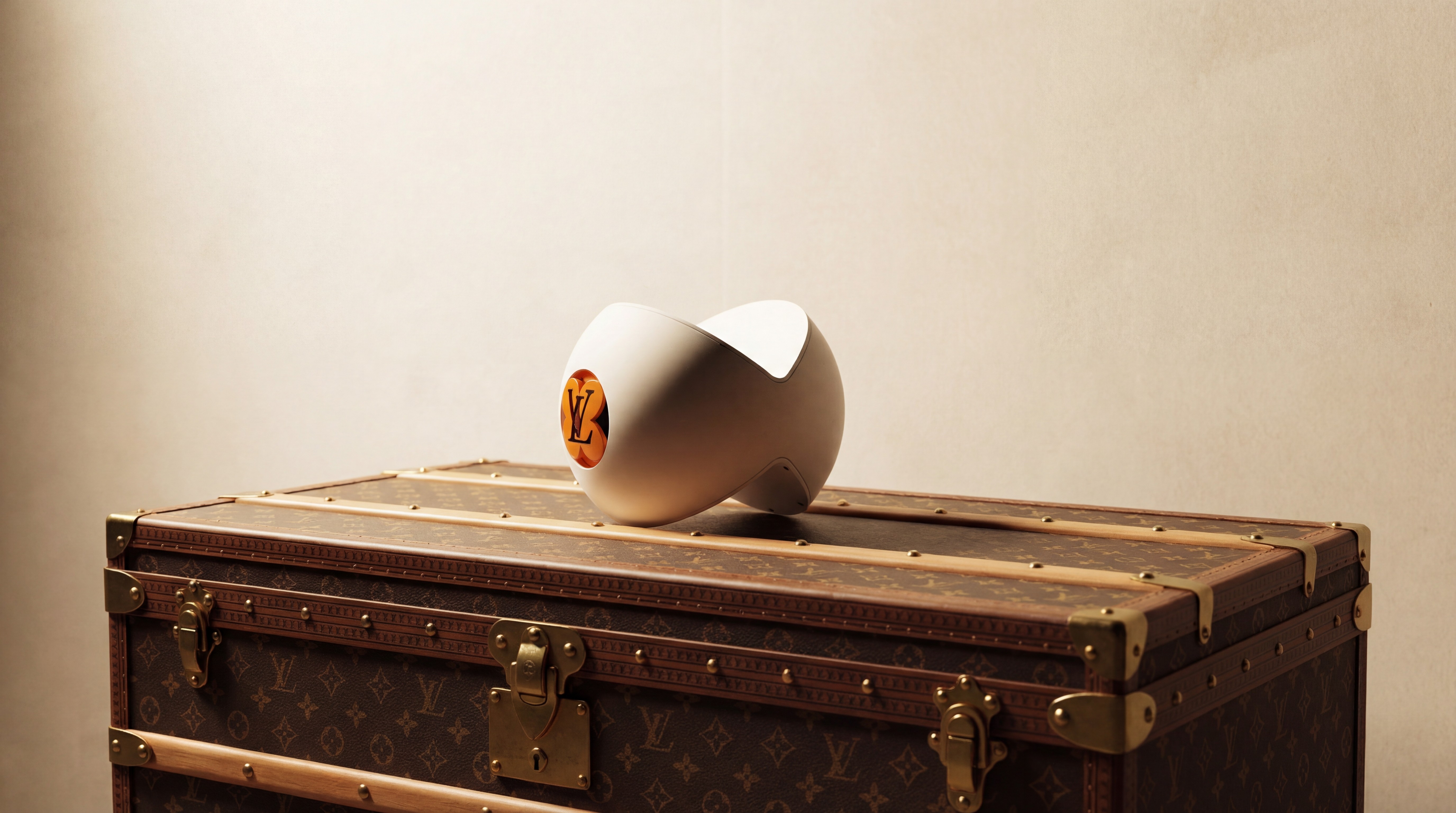

LV ECHO
A fully functional speaker built with off-the-shelf components, industry-grade manufacturing, and
premium automotive finishes.
PROTOTYPING
BRANDING
CNC
LOUIS VUITTON
Louis Vuitton, since 1850, is a heritage brand renowned for its craftsmanship, innovation, and timeless design. it has redefined luxury through exceptional leather goods, fashion, and accessories.
ETHOS
Louis Vuitton’s ethos is built on creative evolution. The brand embodies a spirit of travel and excellence, consistently pushing boundaries while honoring its rich heritage.
ENVISIONED SPACE FOR MY DESIGN
MAKING A PROTOTYPE WITH THESE COMPONENTS

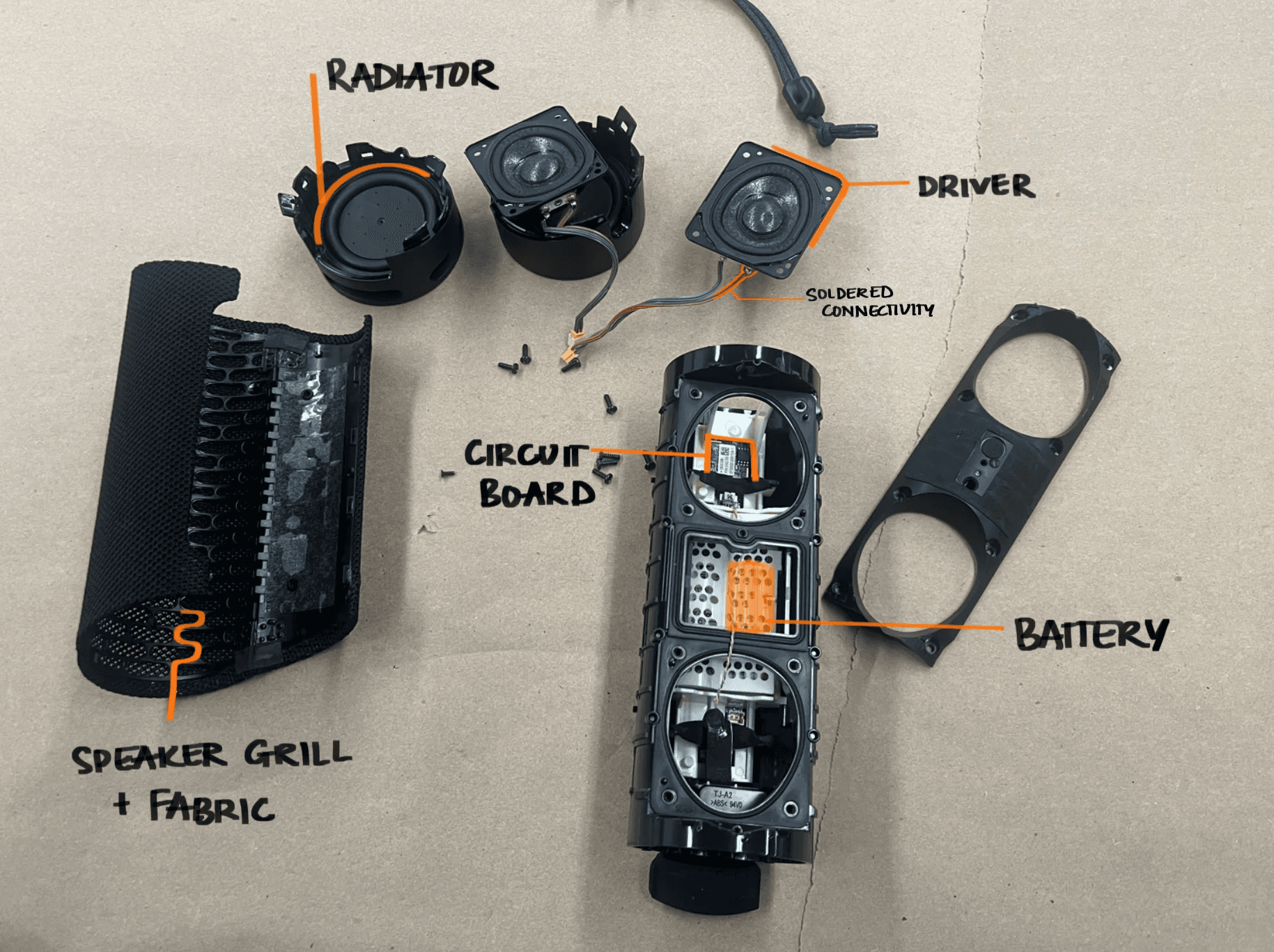

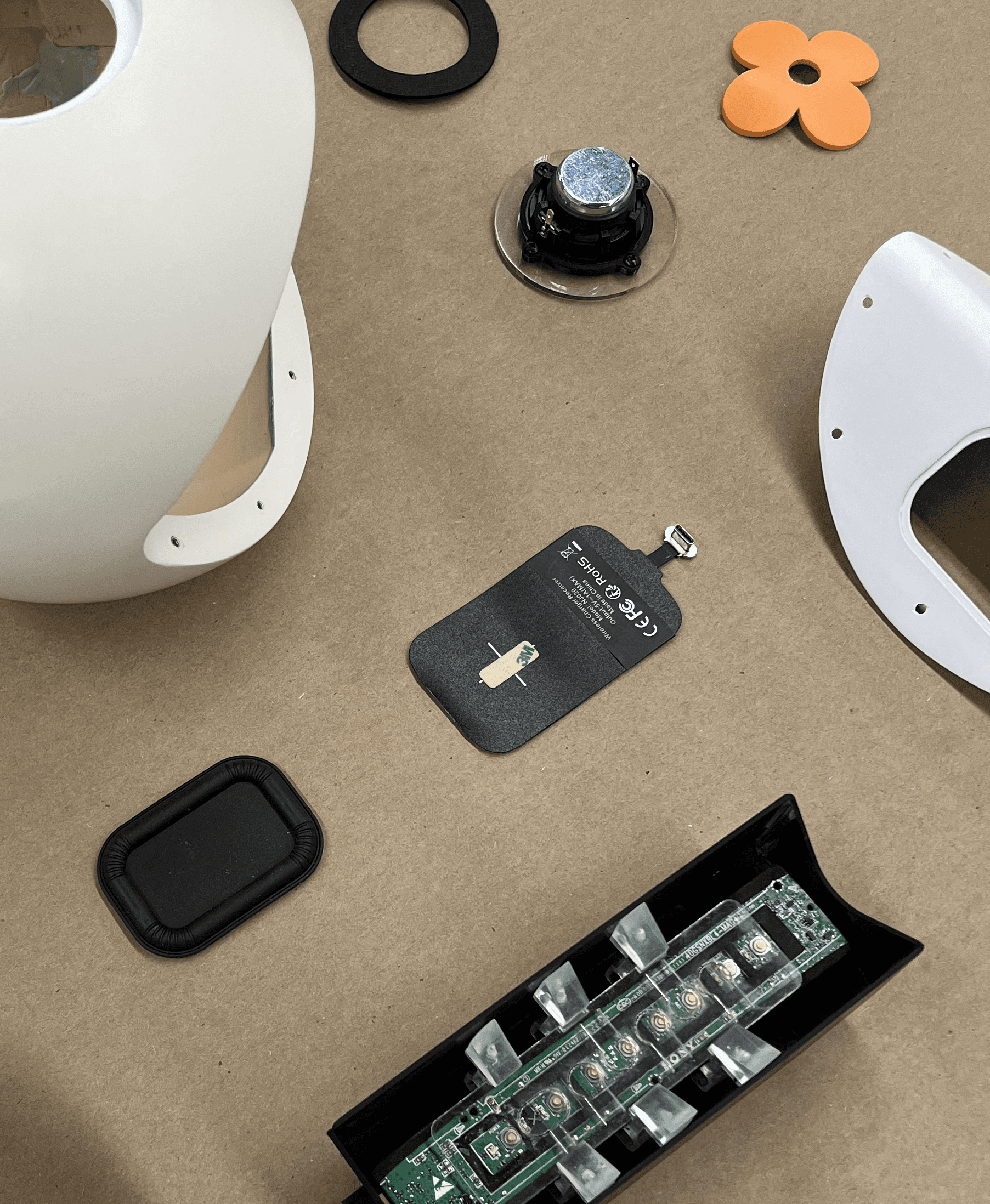

Speaker Parts Study SONY SRS —XB23

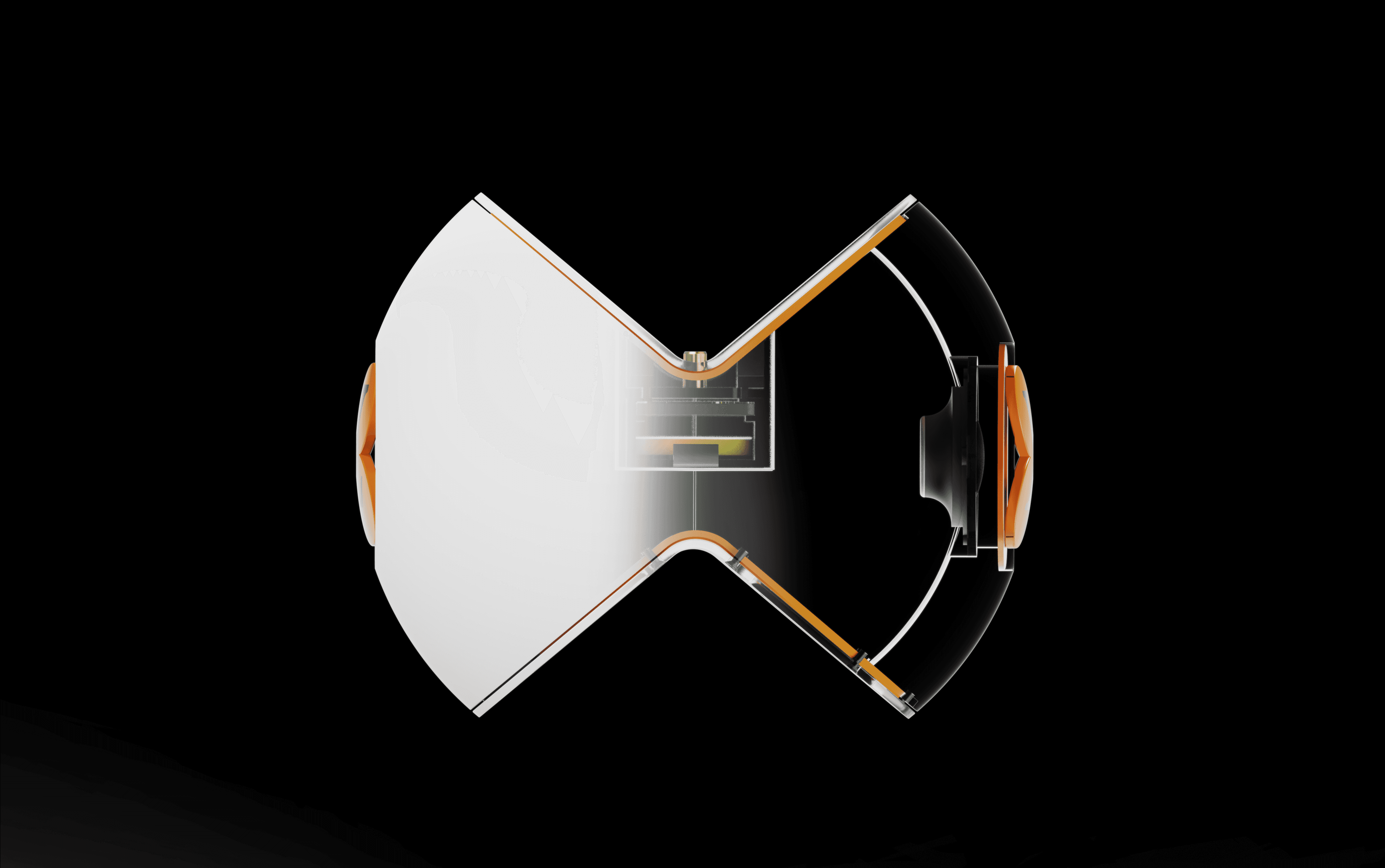

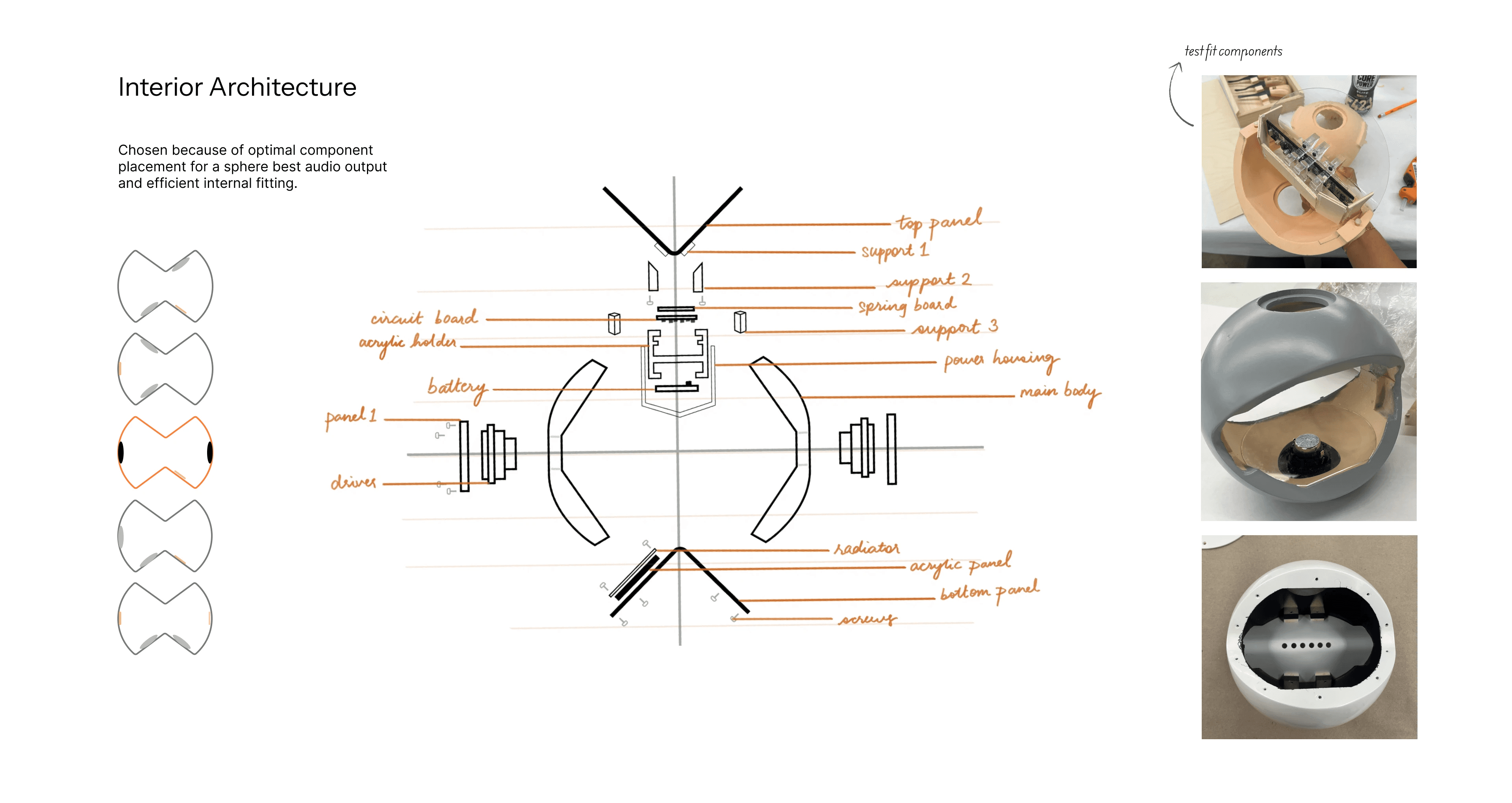

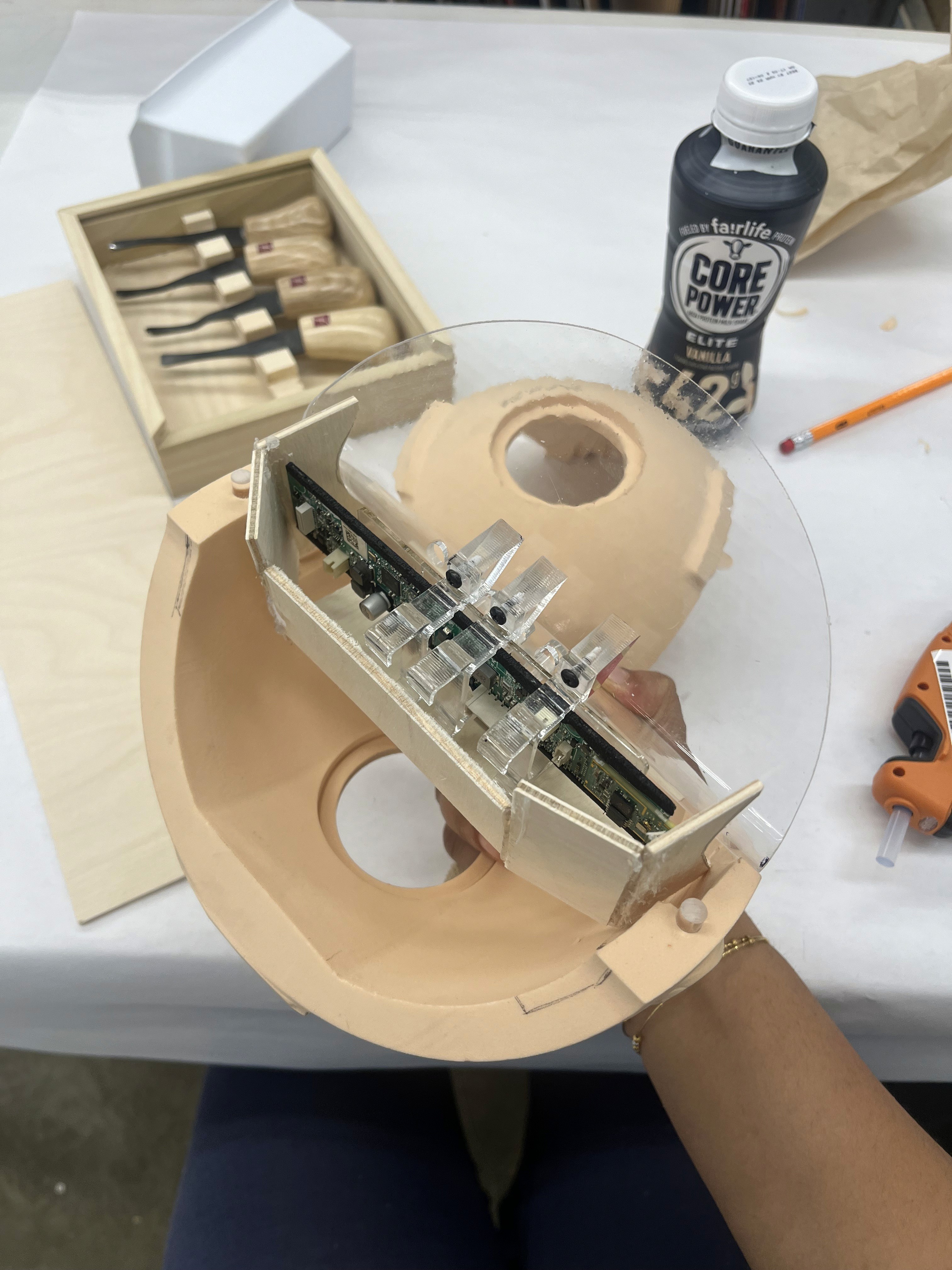

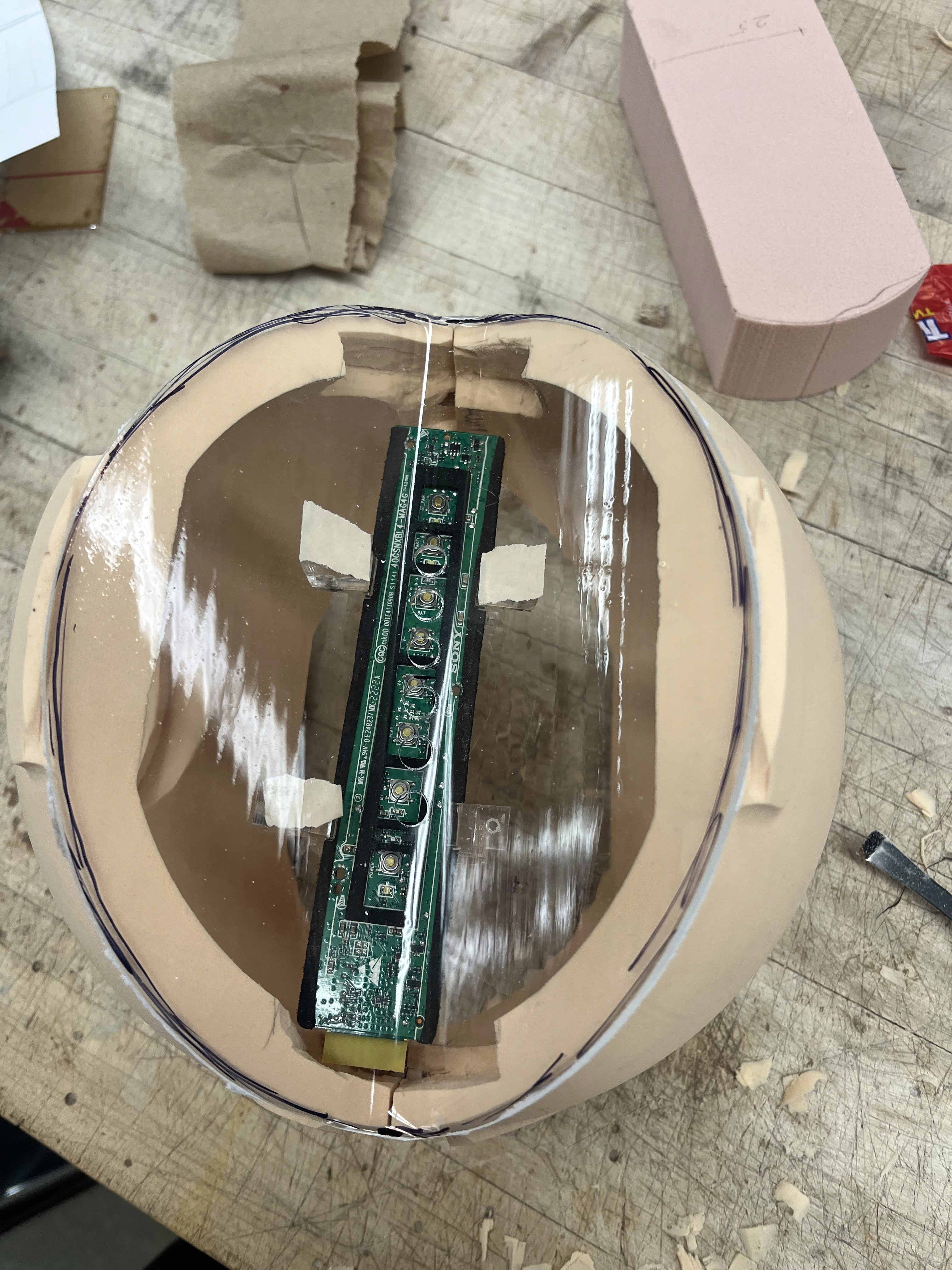

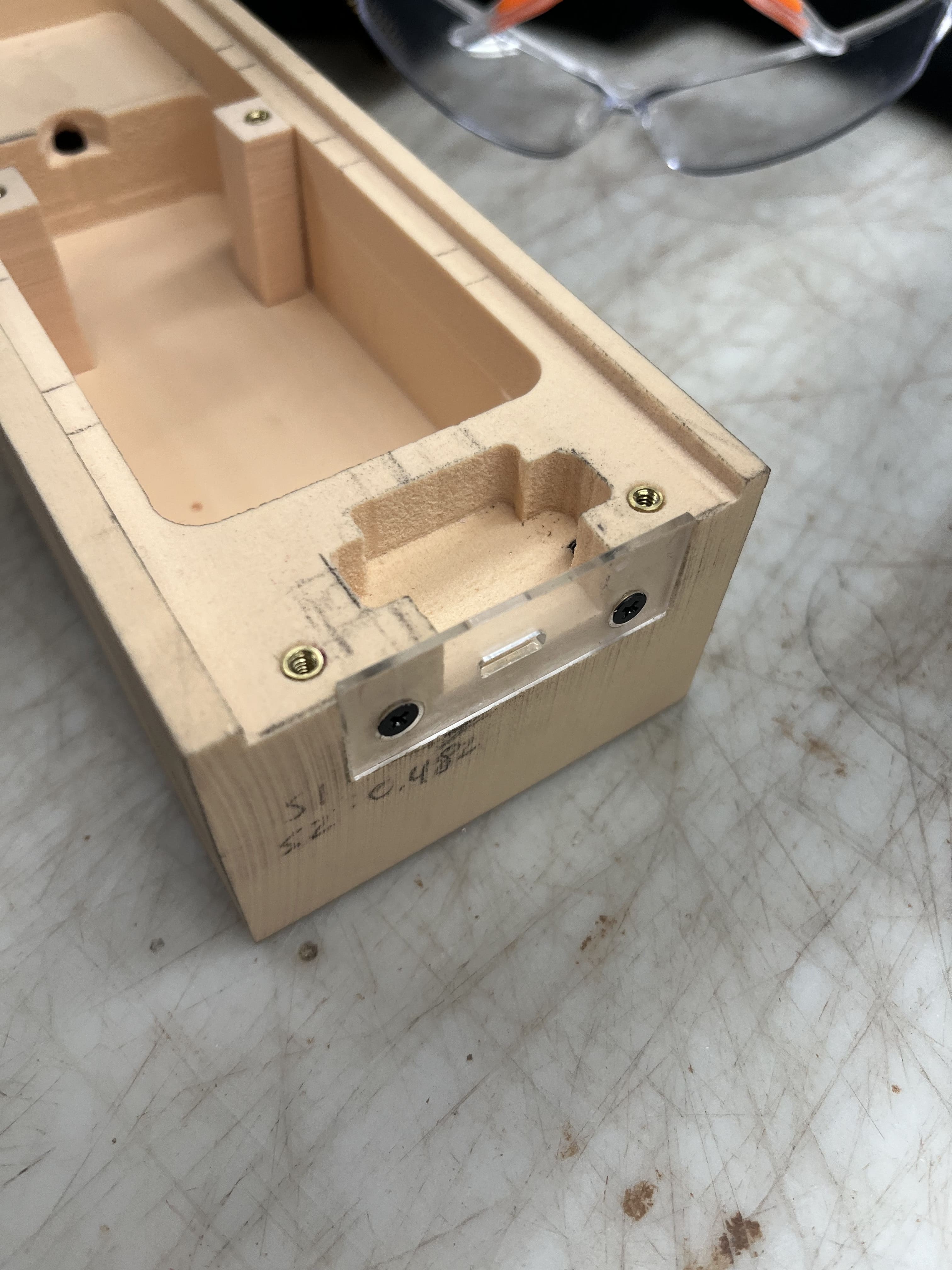

The speaker was disassembled, with each component housed in a milled prototype tailored to fit the parts.

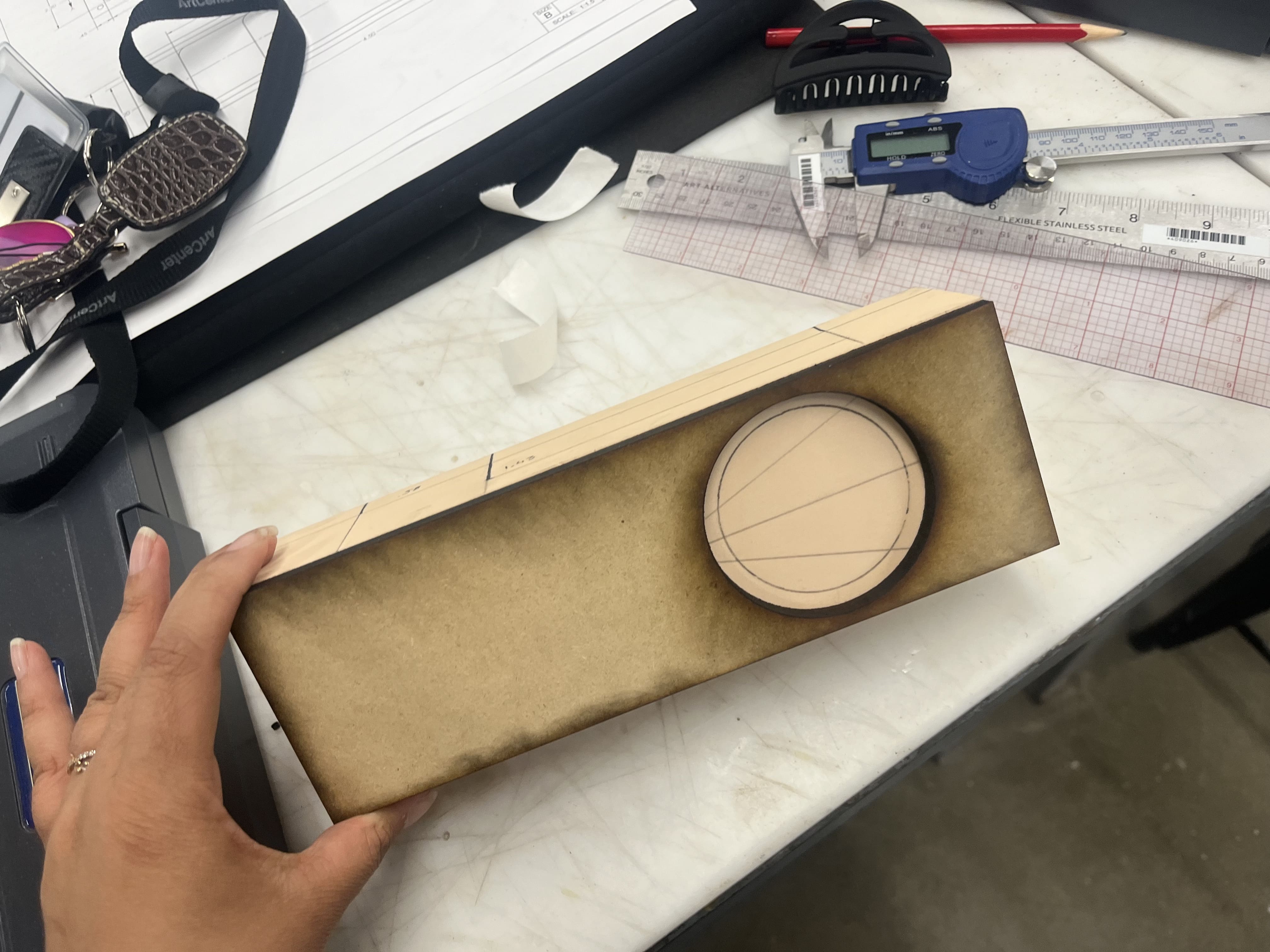

PROTOTYPE 1 EXECUTION
DESIGN EXPLORATION

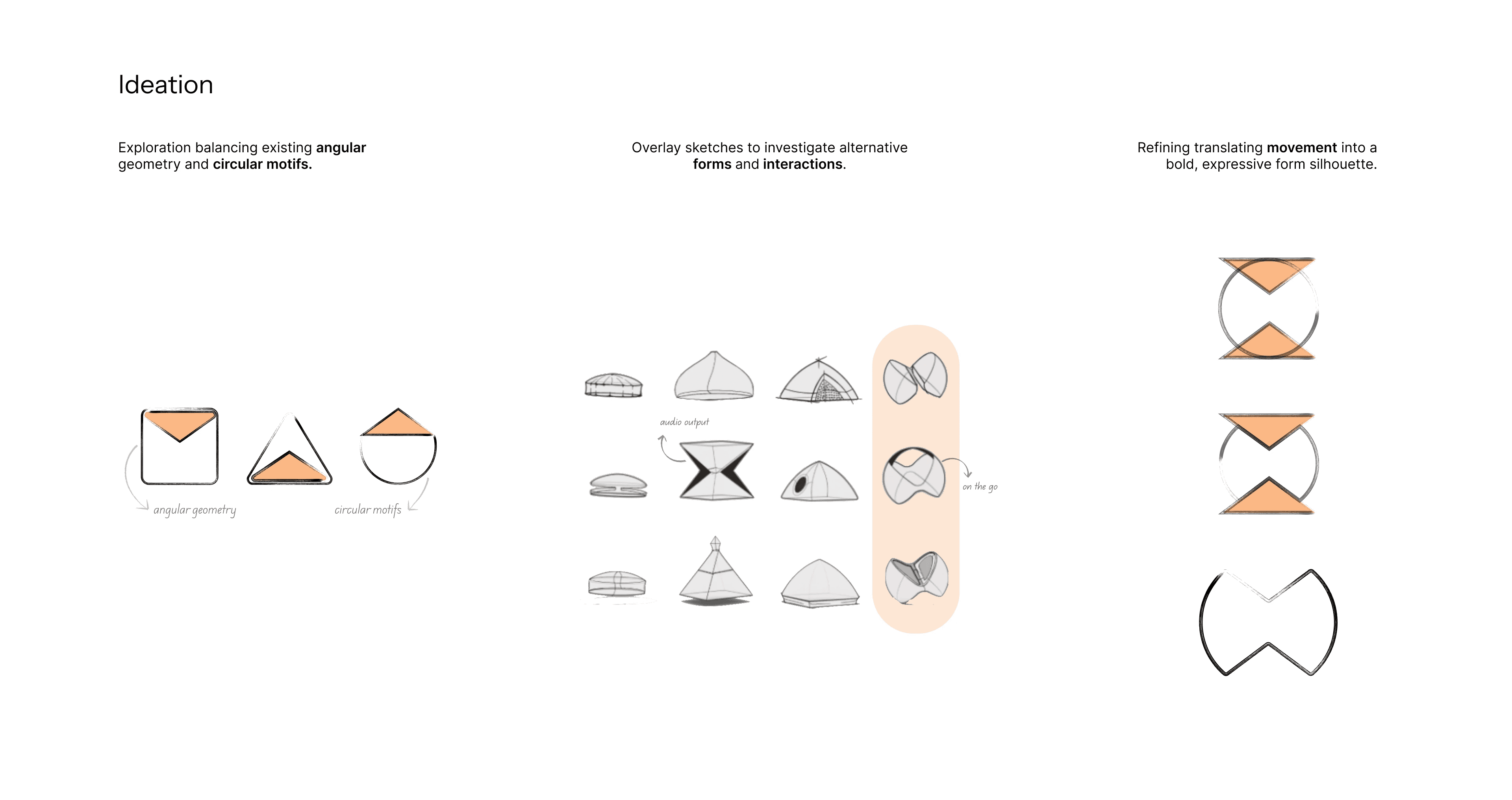

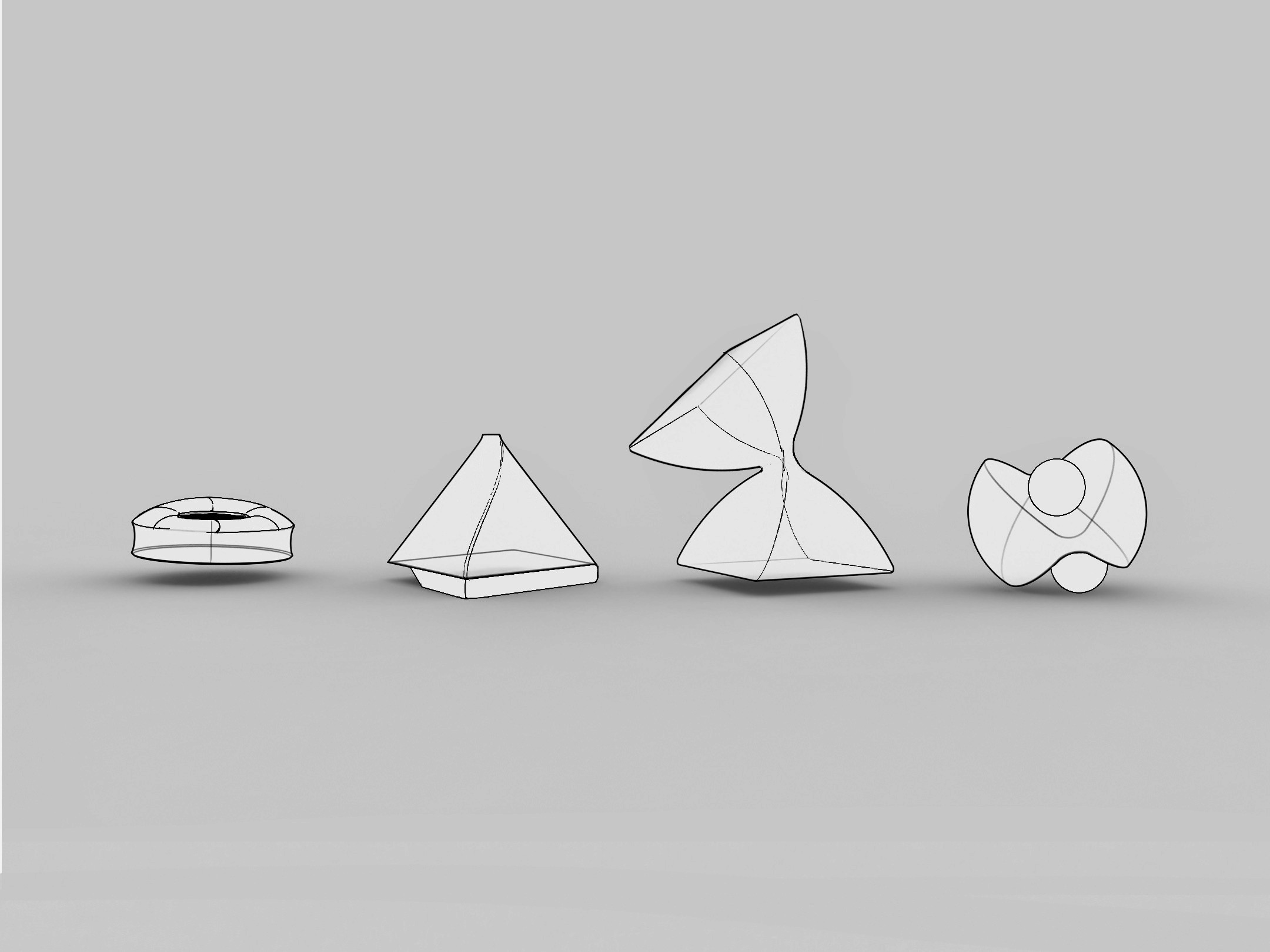

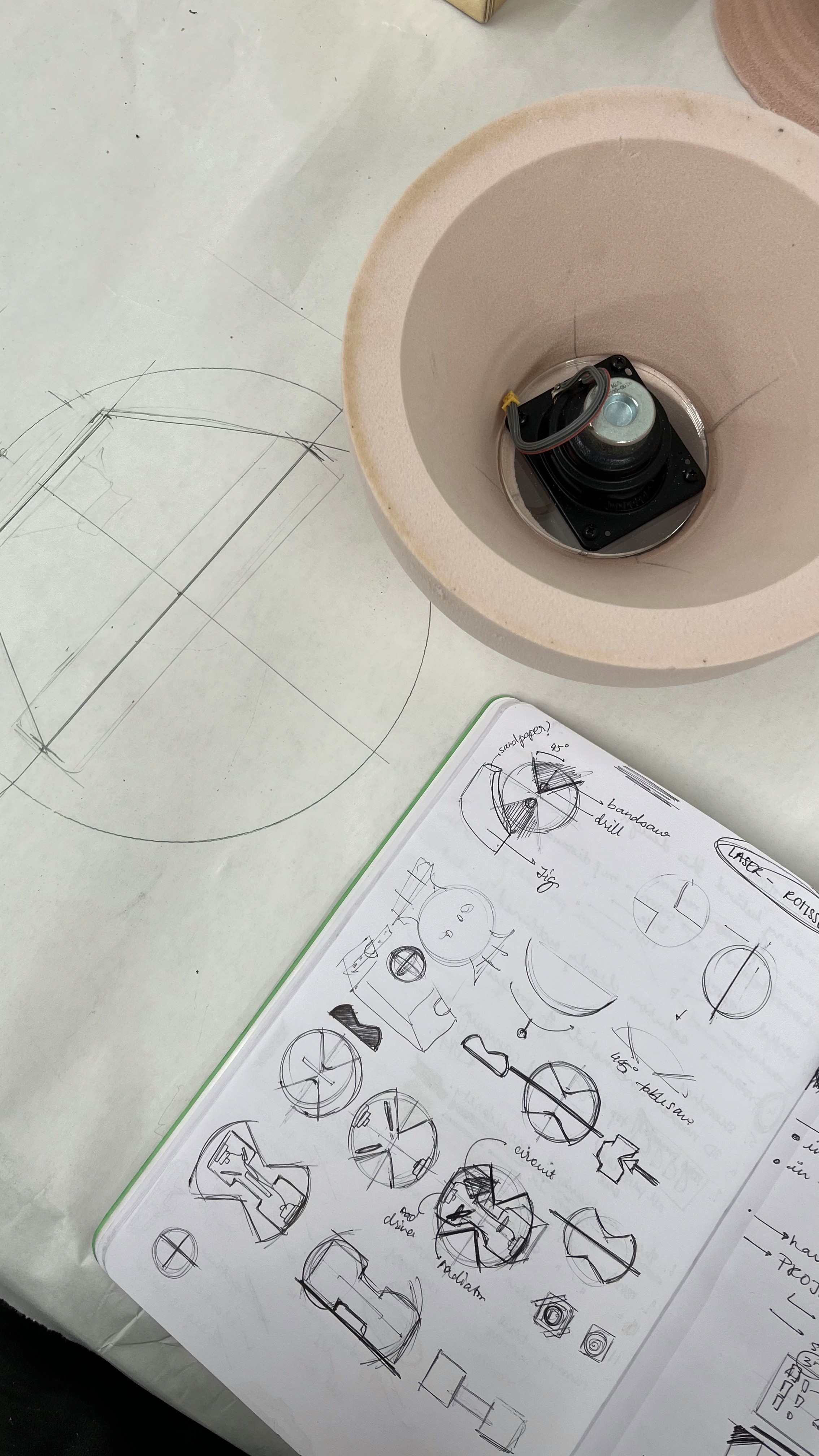

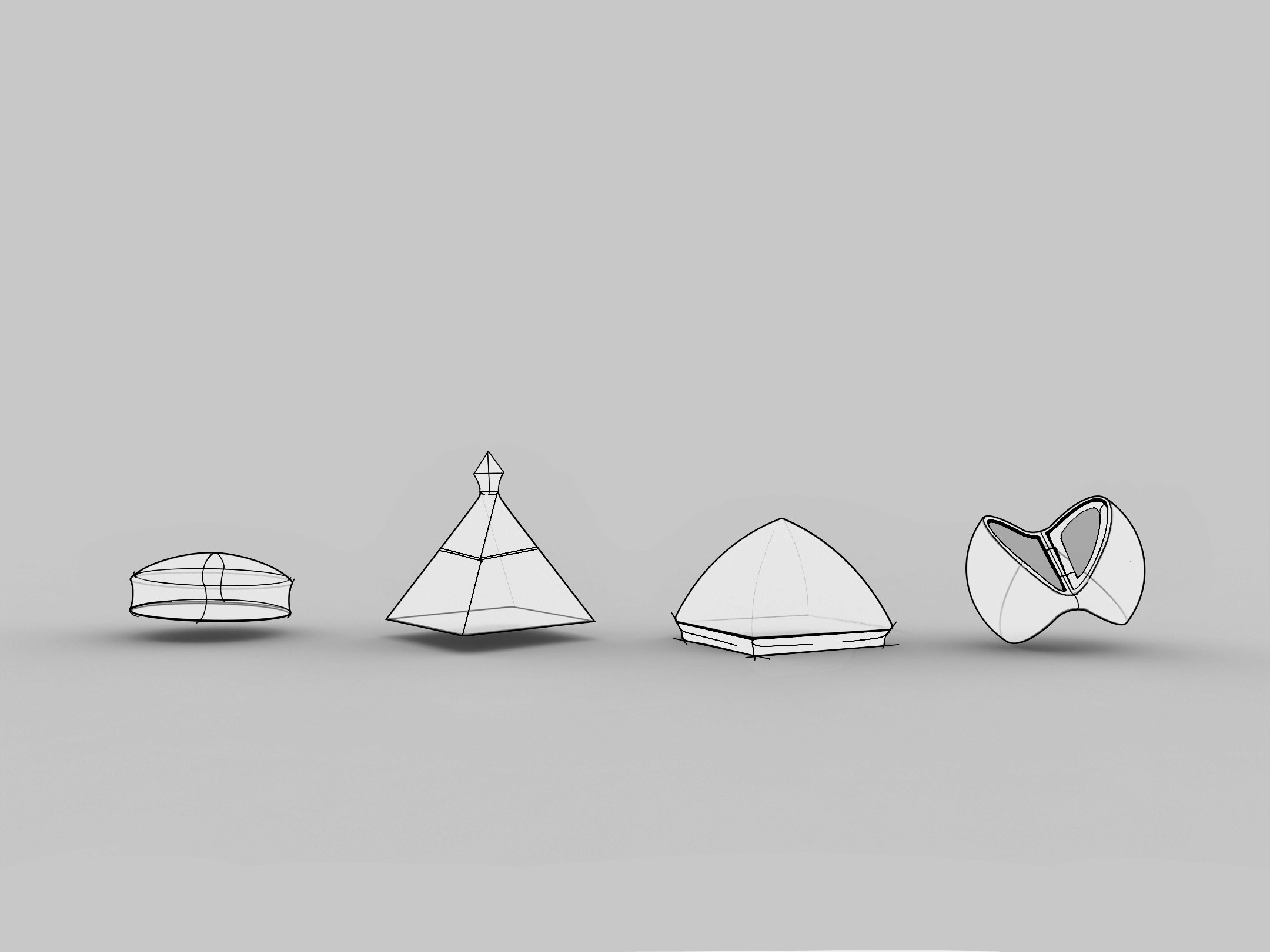

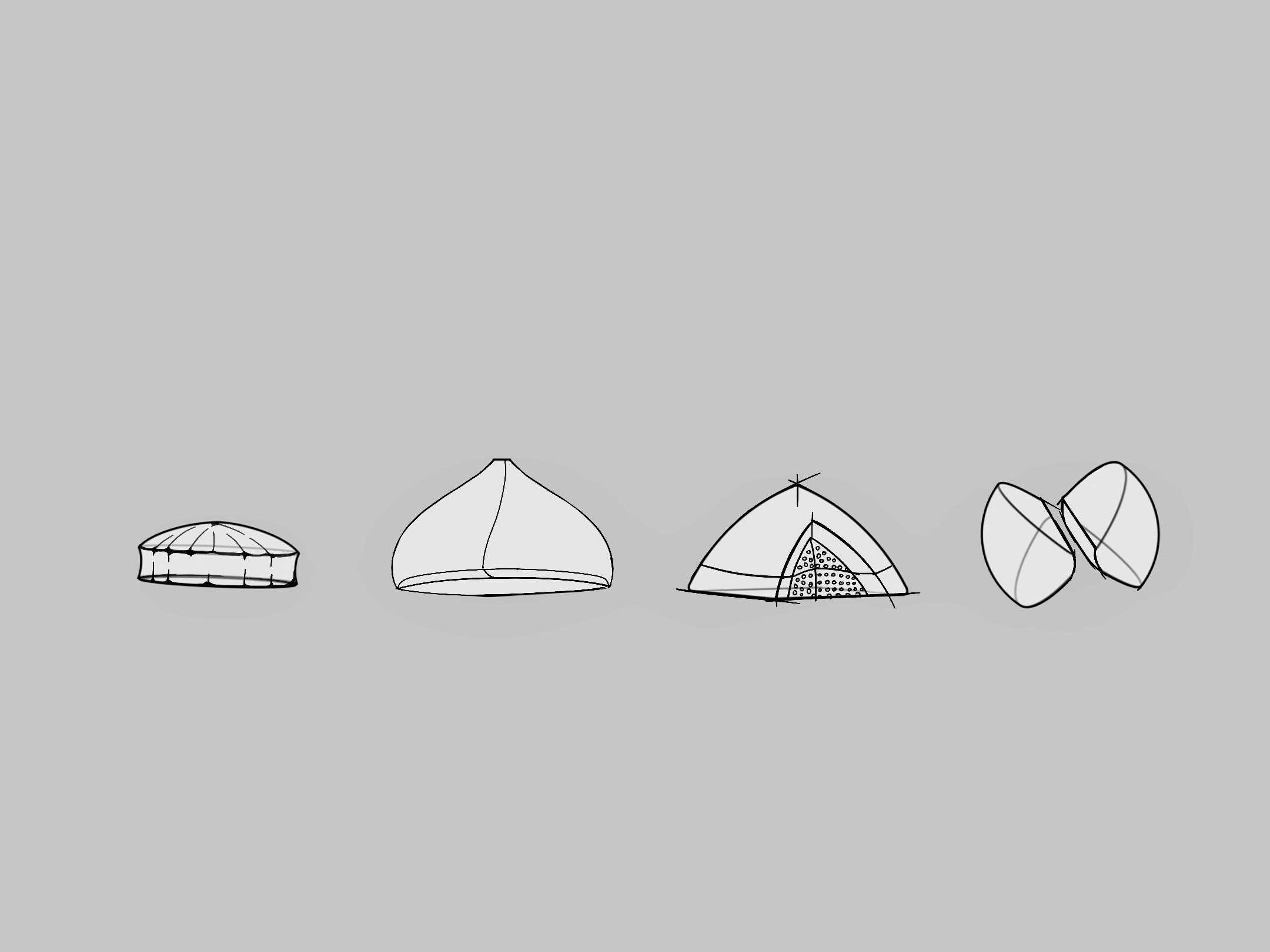

Quick sketches for mainform prototyping

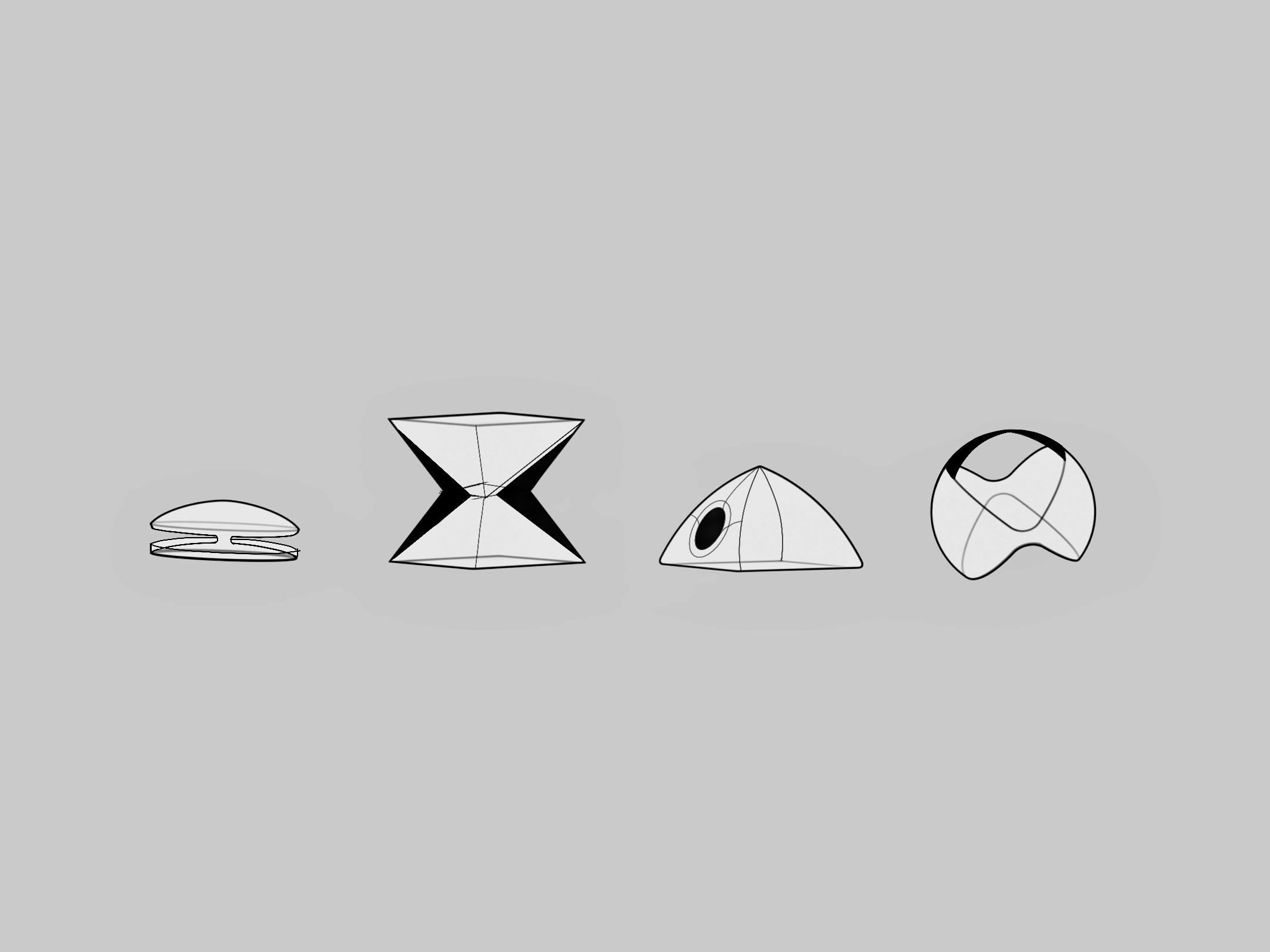

Further conceptulization with mainform underlays

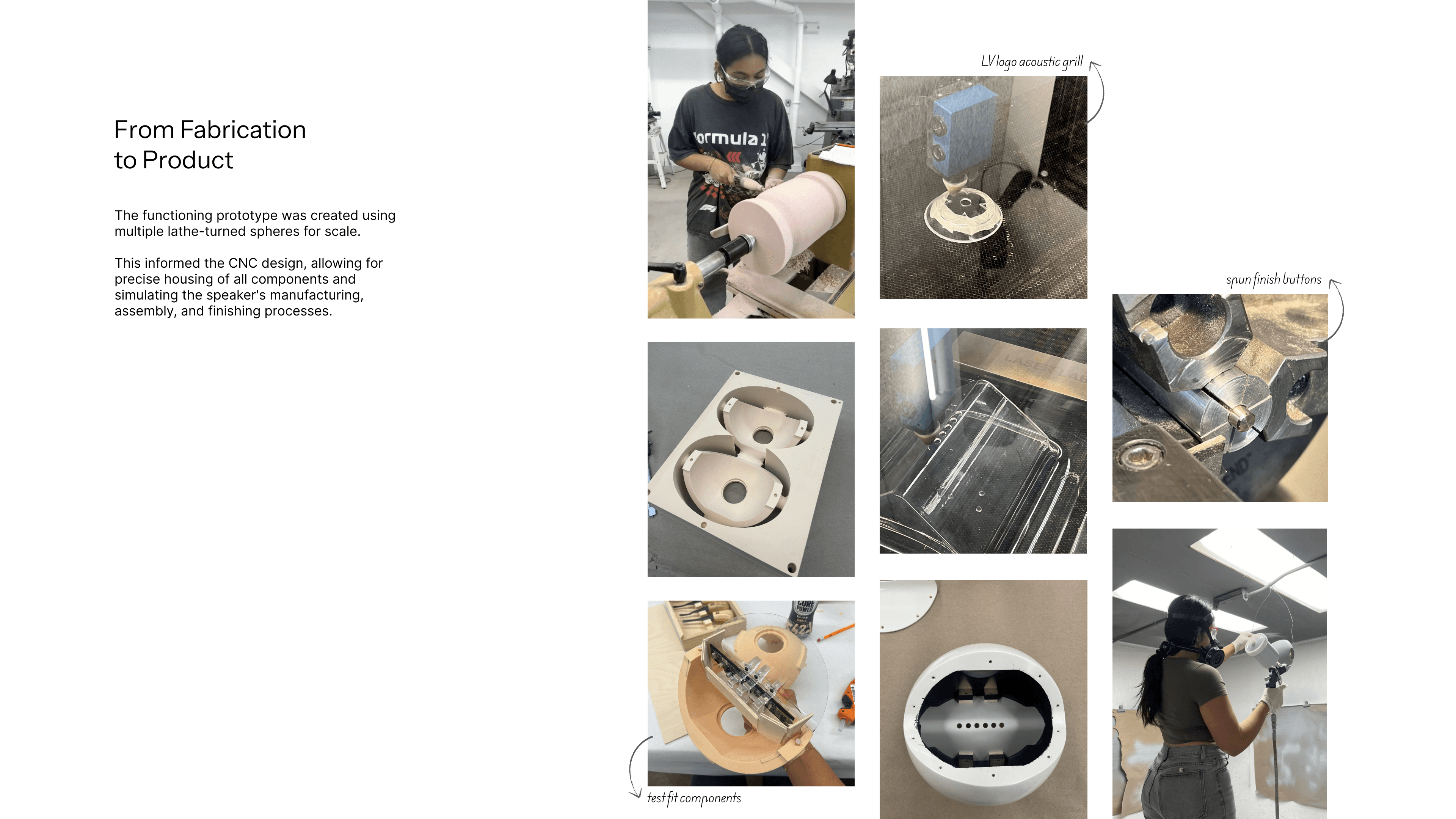

PROCESS OF PROTOTYPE 2

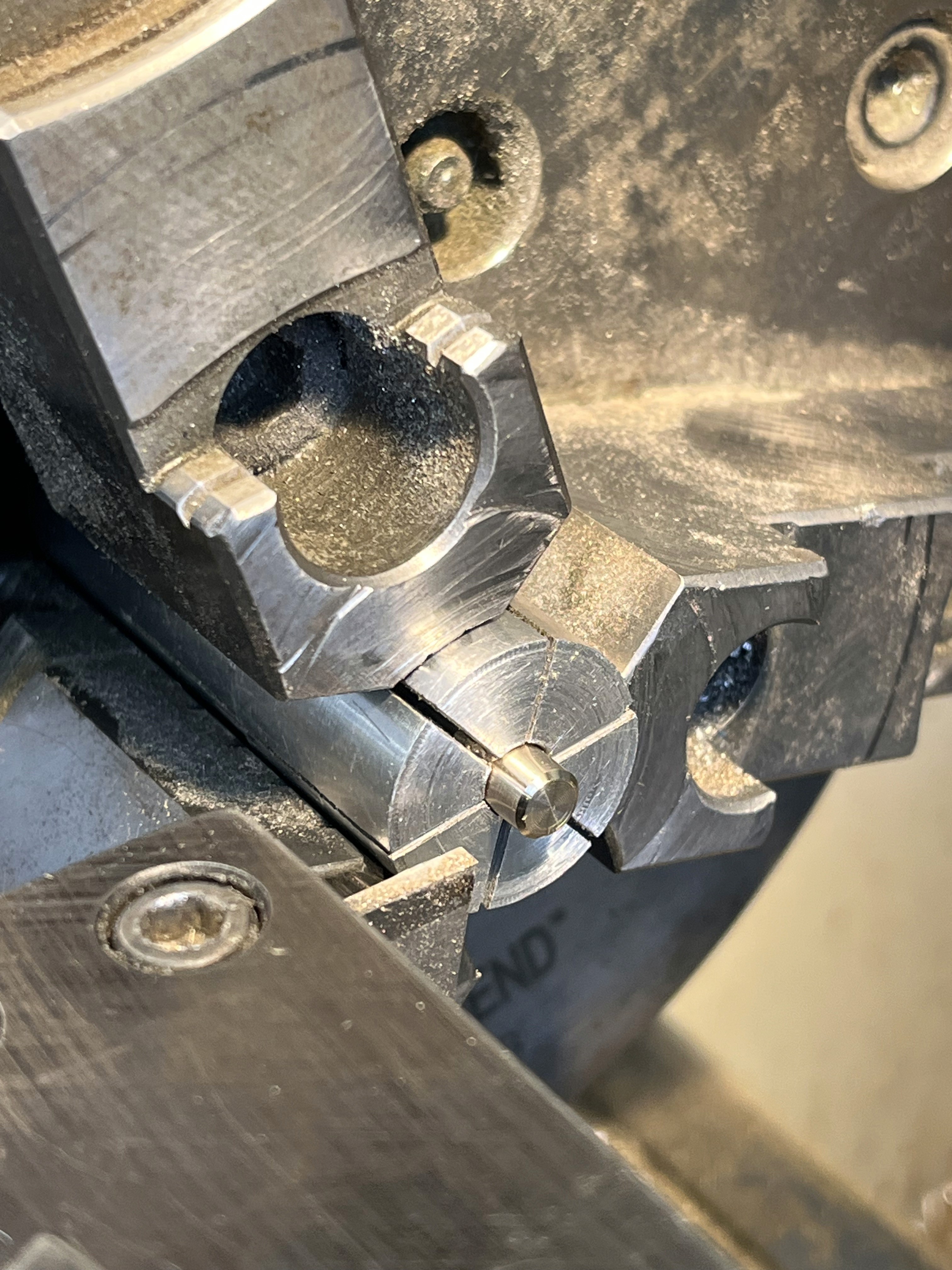

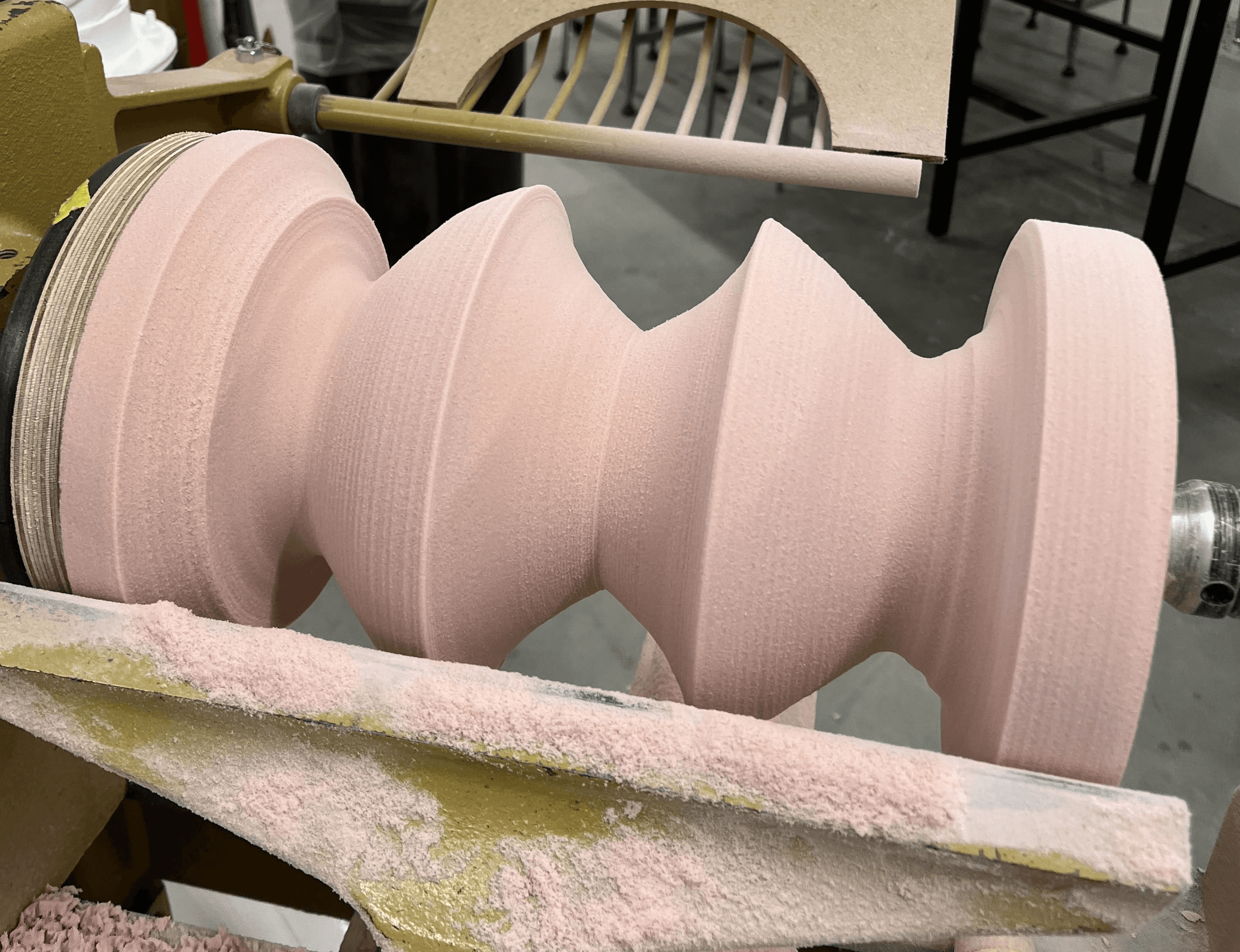

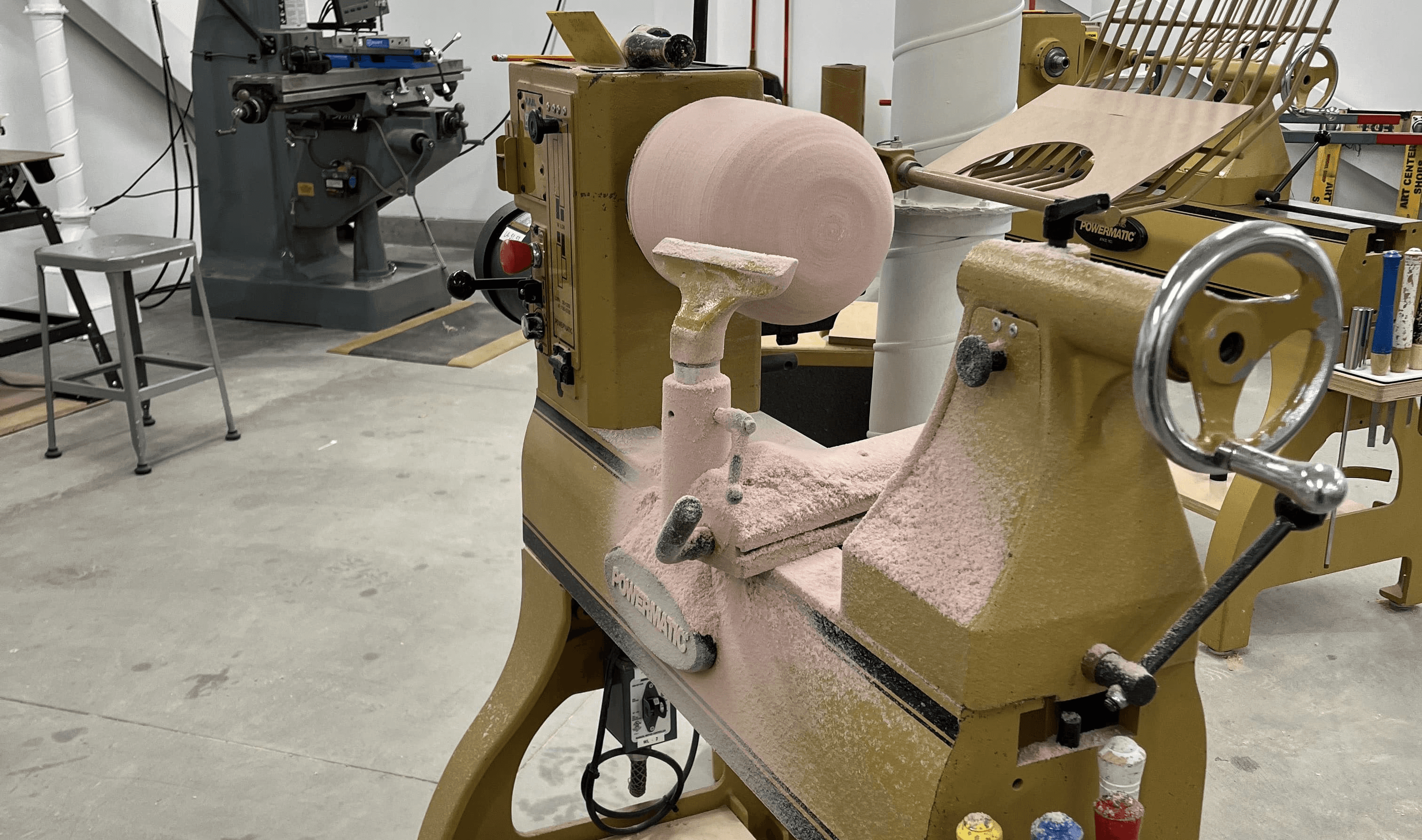

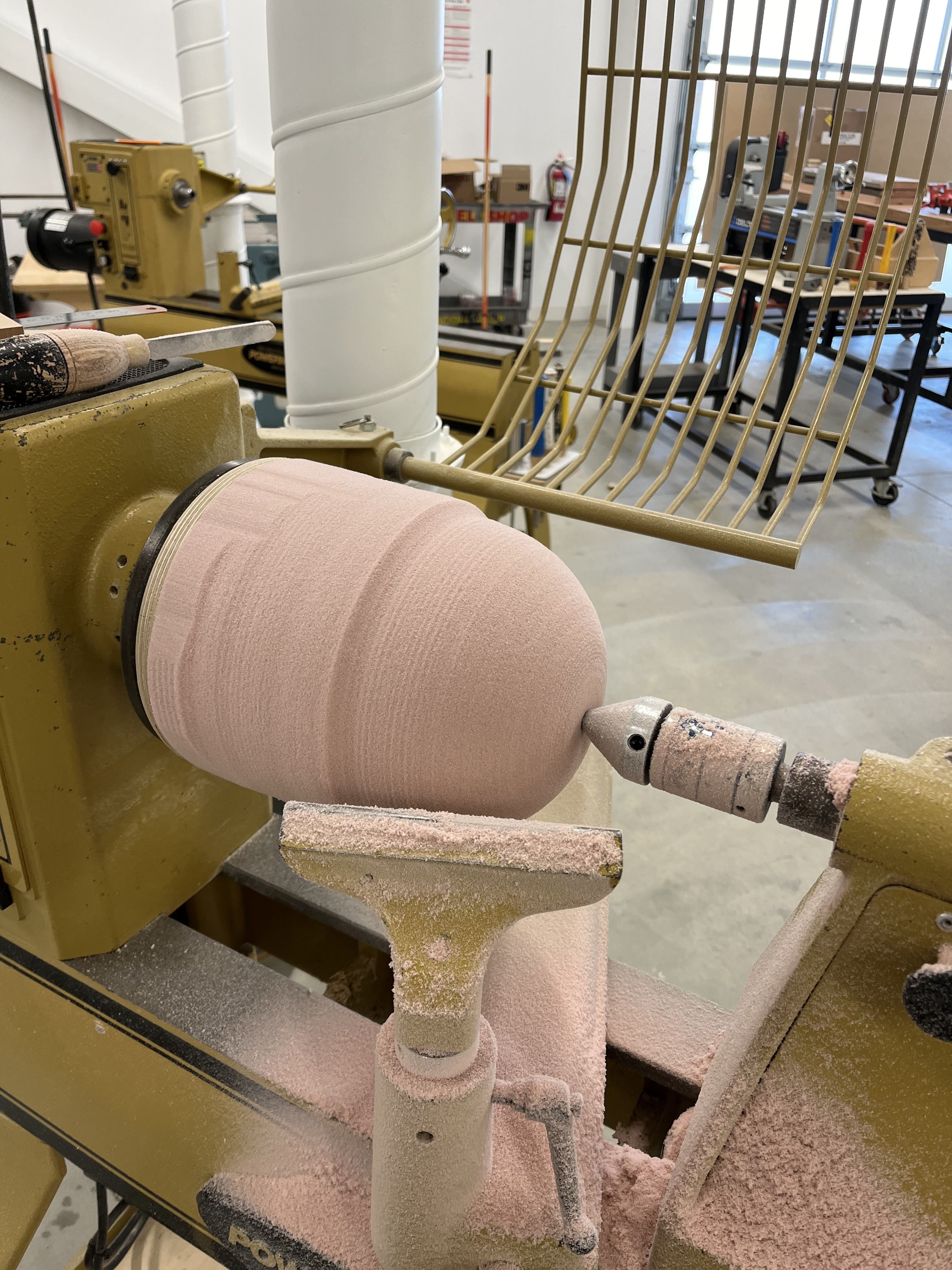

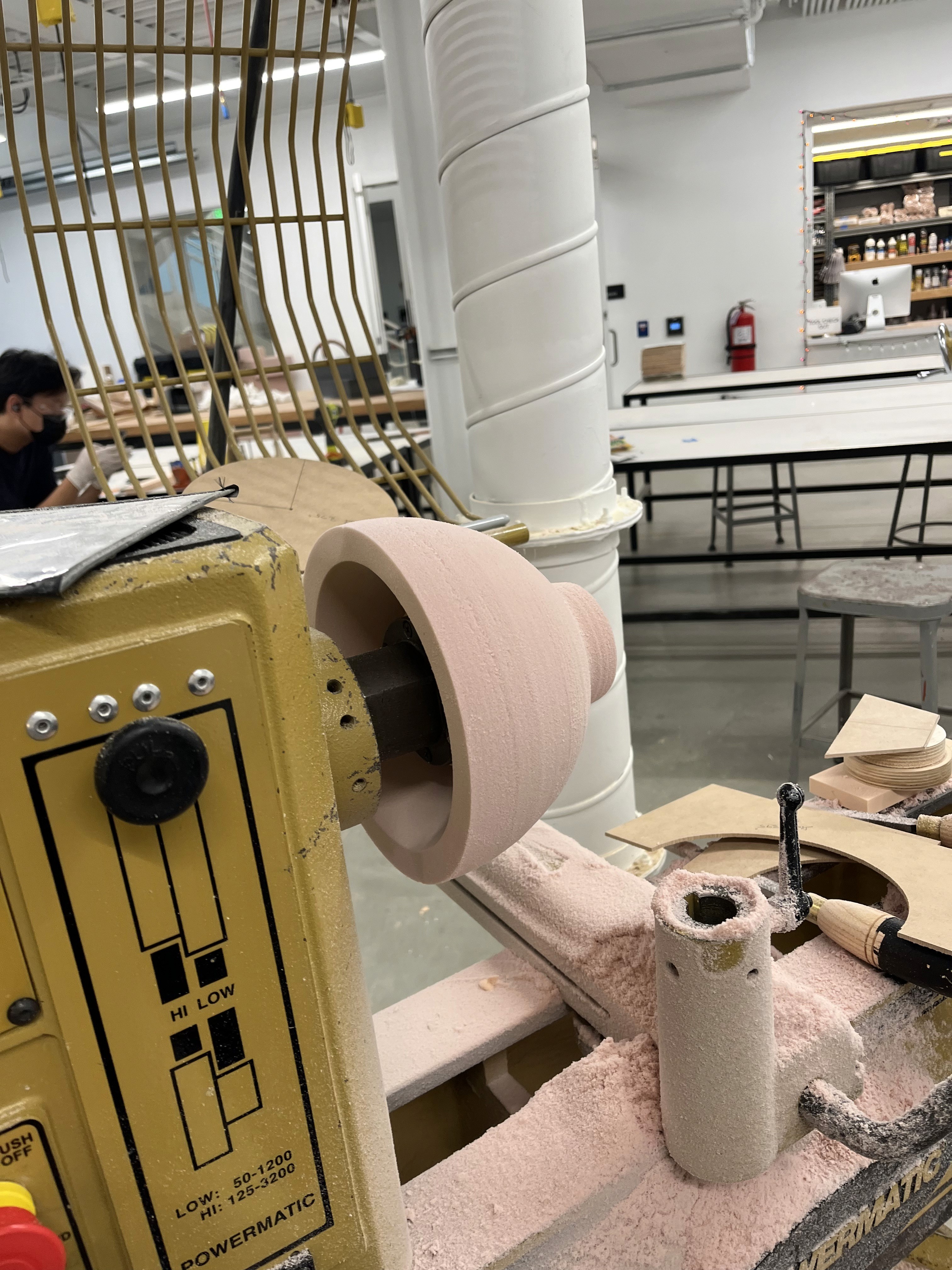

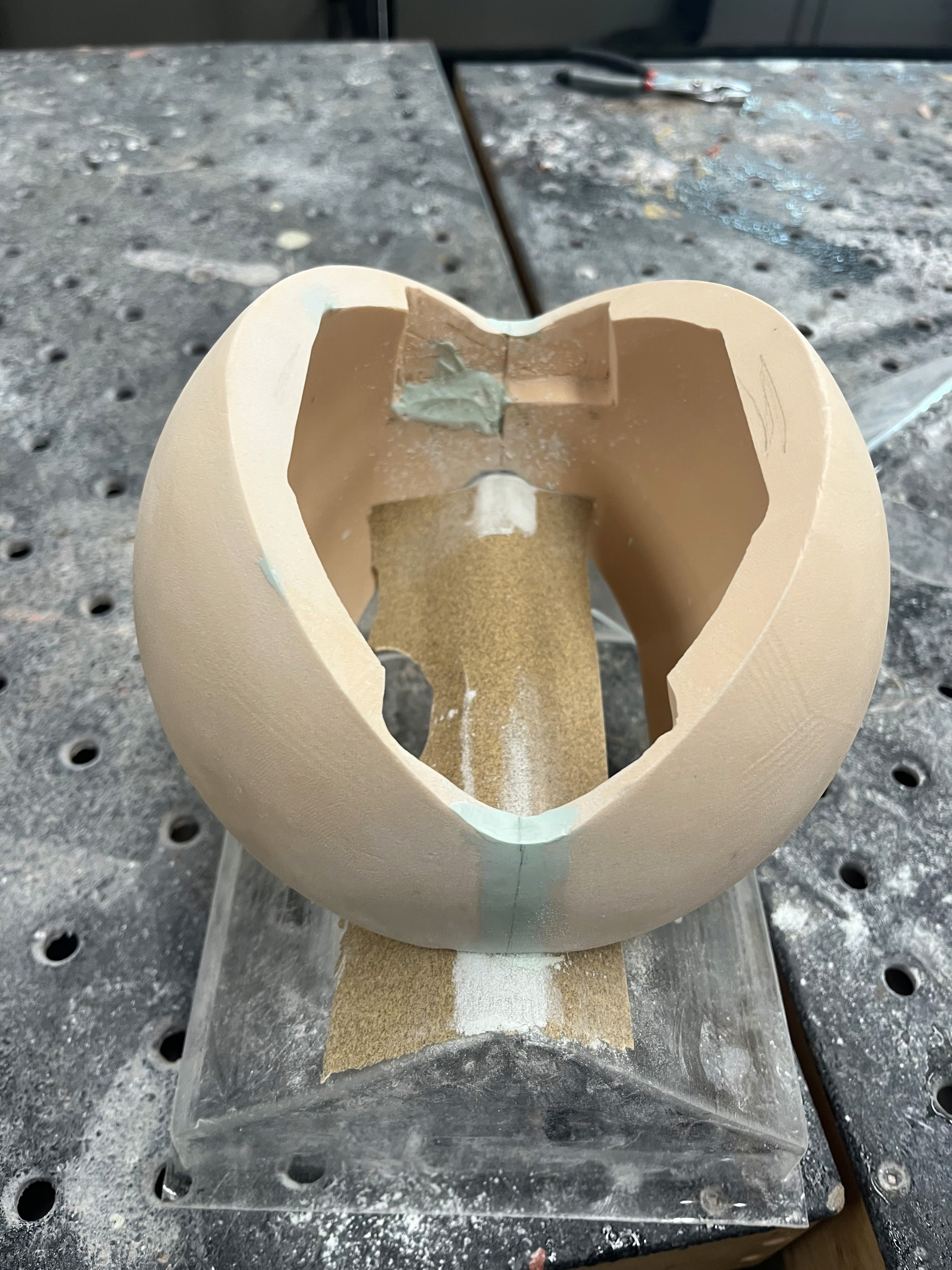

Prototype 1 was figuring out jigs to make half-spheres on the lathe. Spent over 40 hours a week.
20 spheres late, my fabrication technique was modified
Time was less, Enthusiasm was more & Curiosty at peak

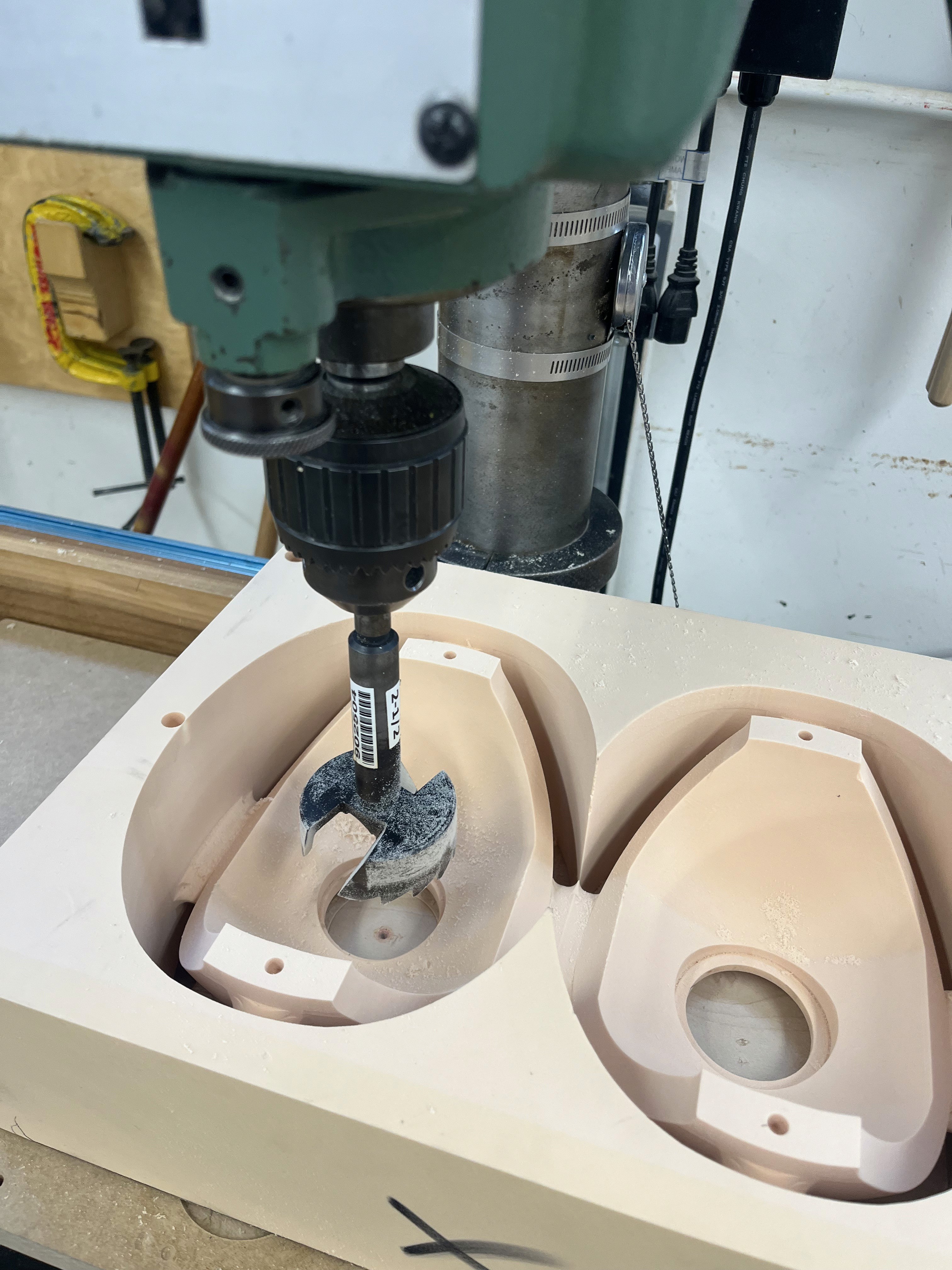

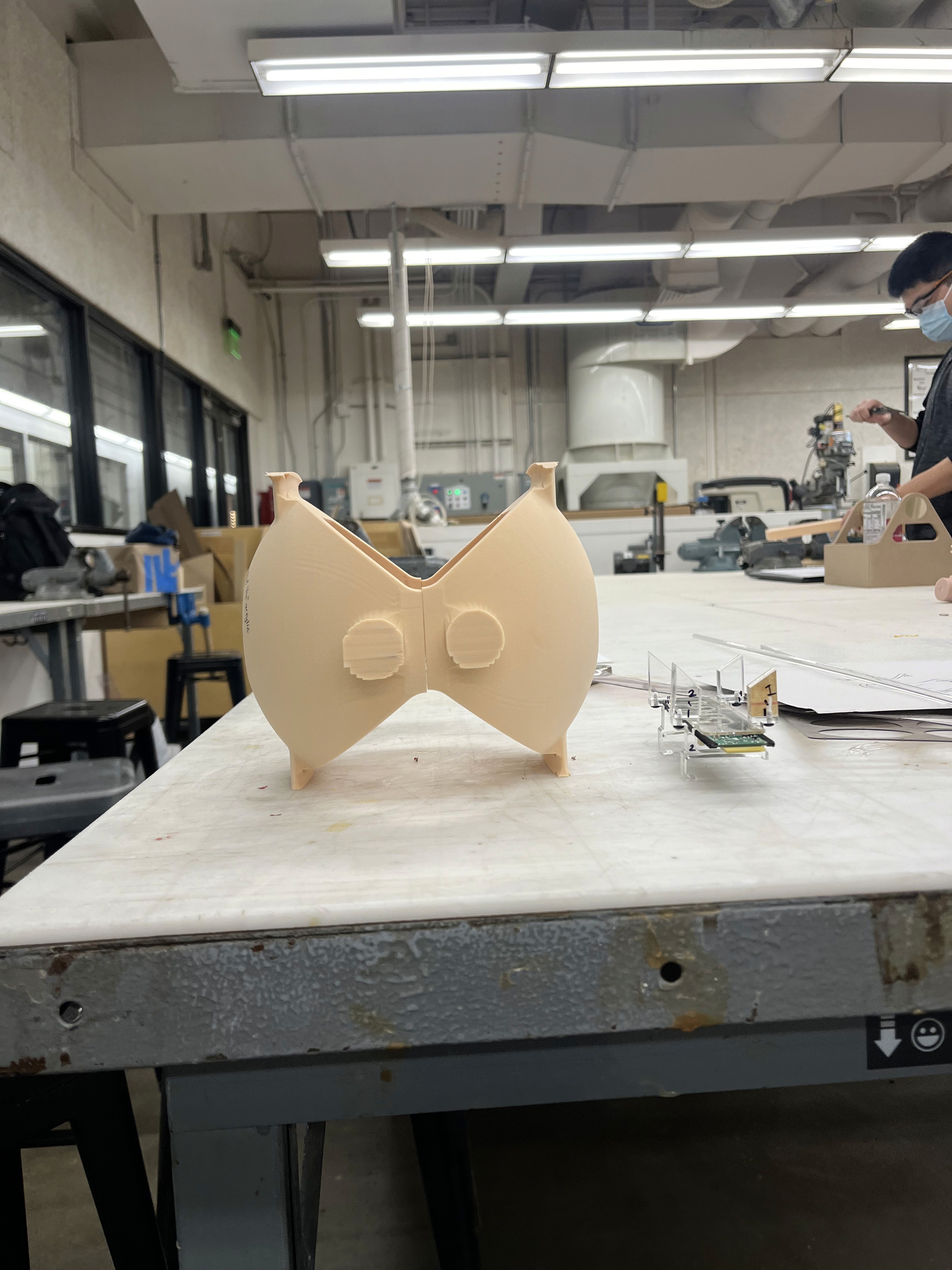

CNC FLIP PART MODEL
FINAL PROTOTYPE and GAME PLAN

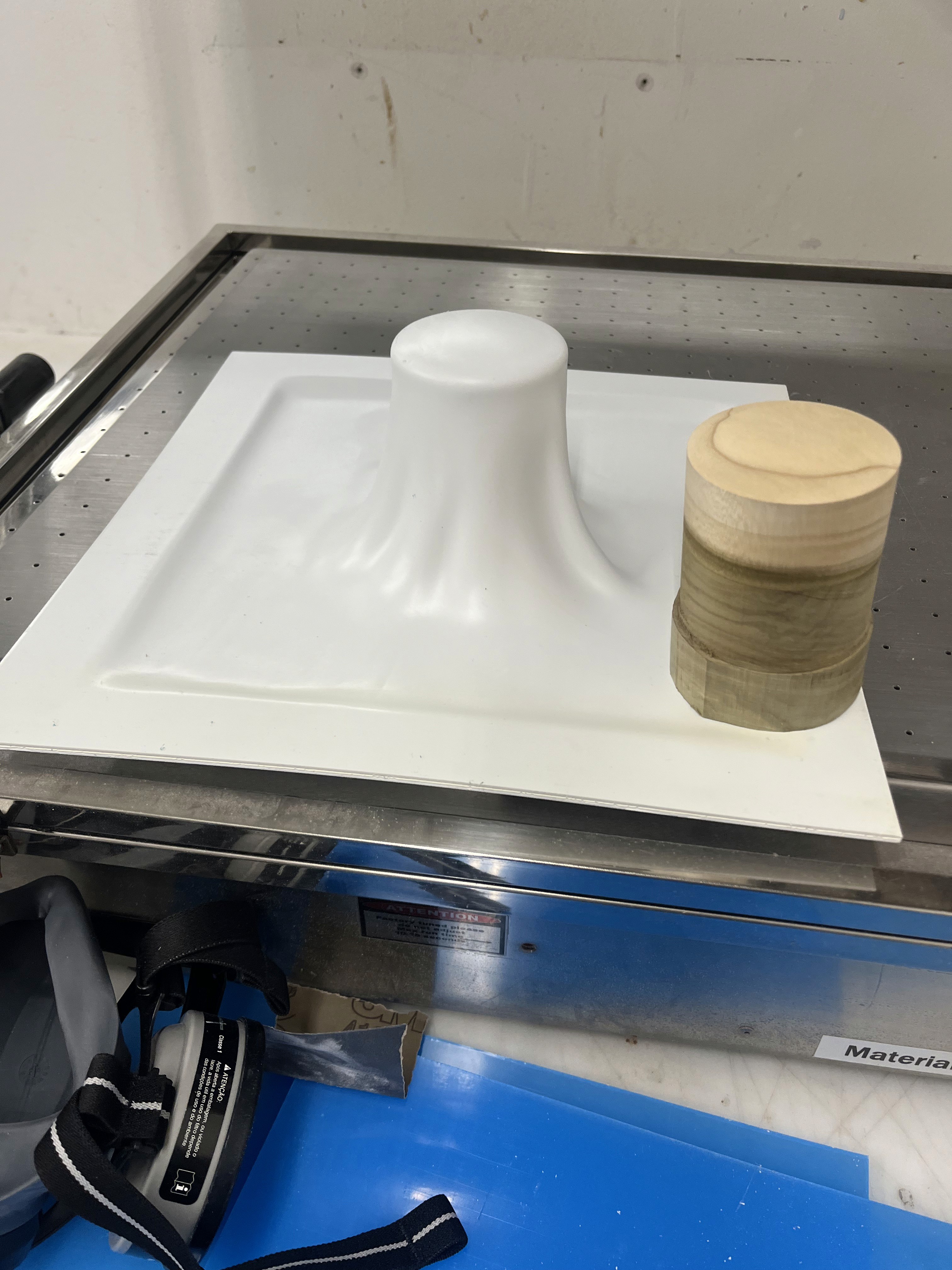

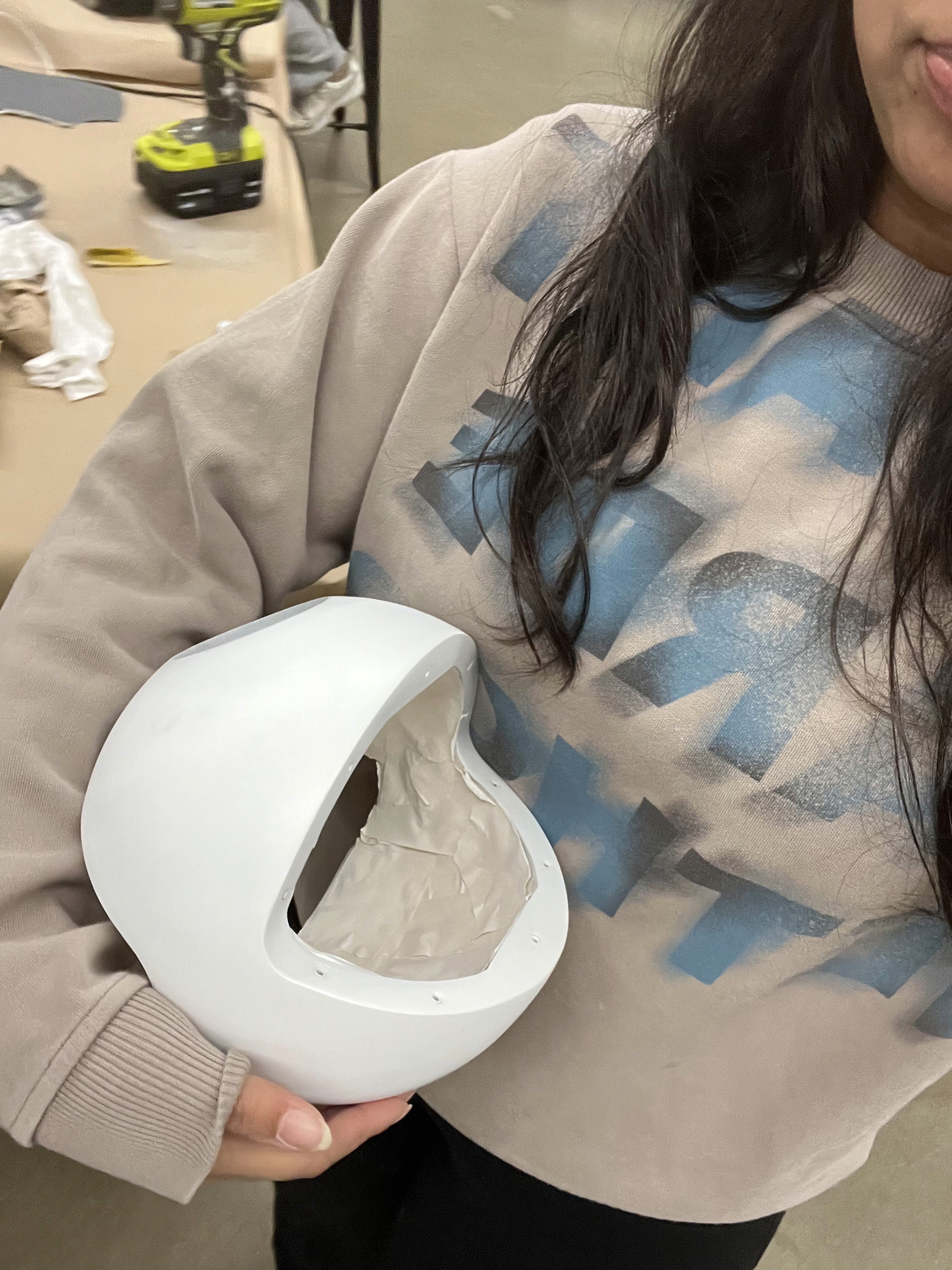

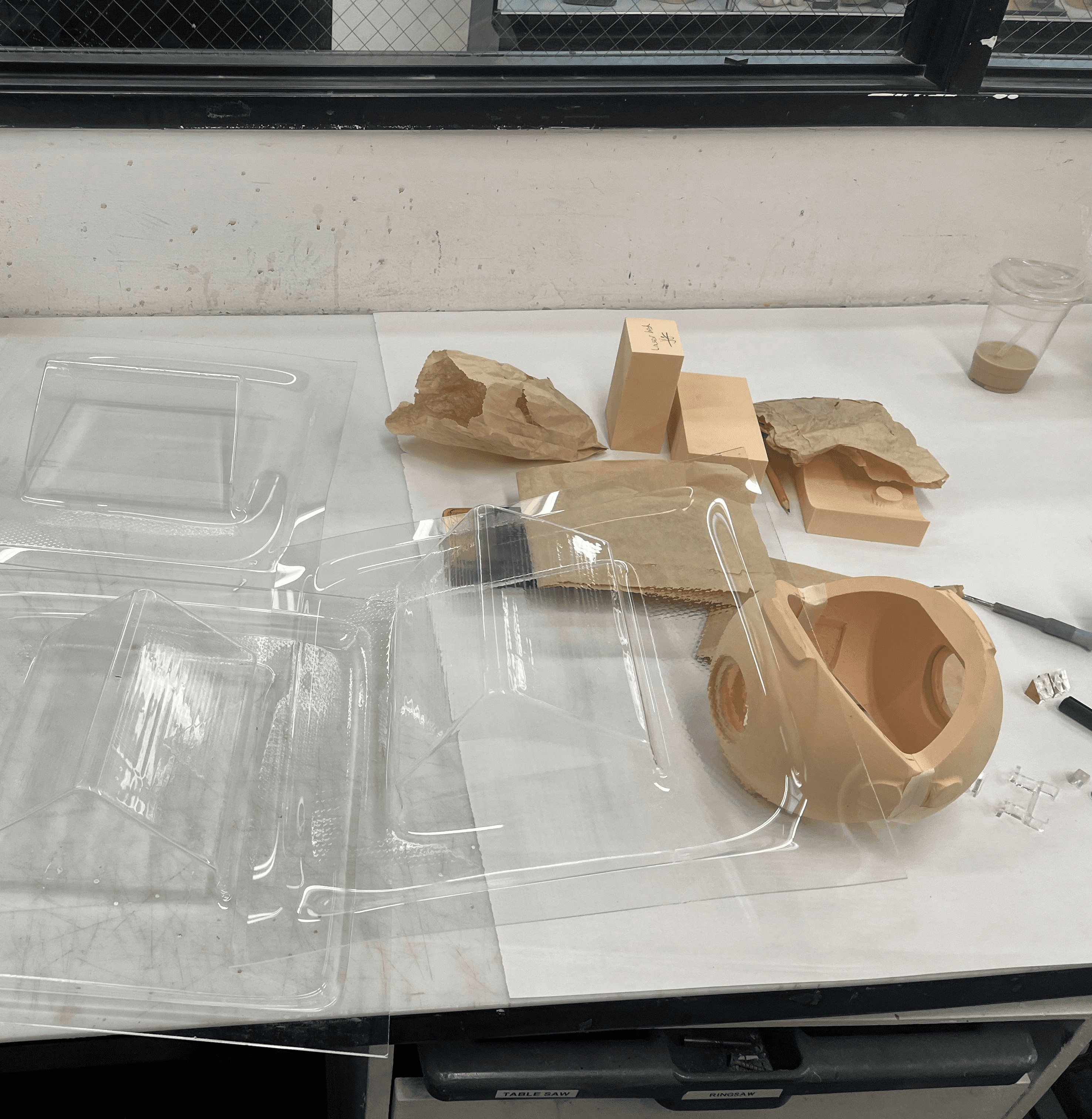

MAKING and FINISHING

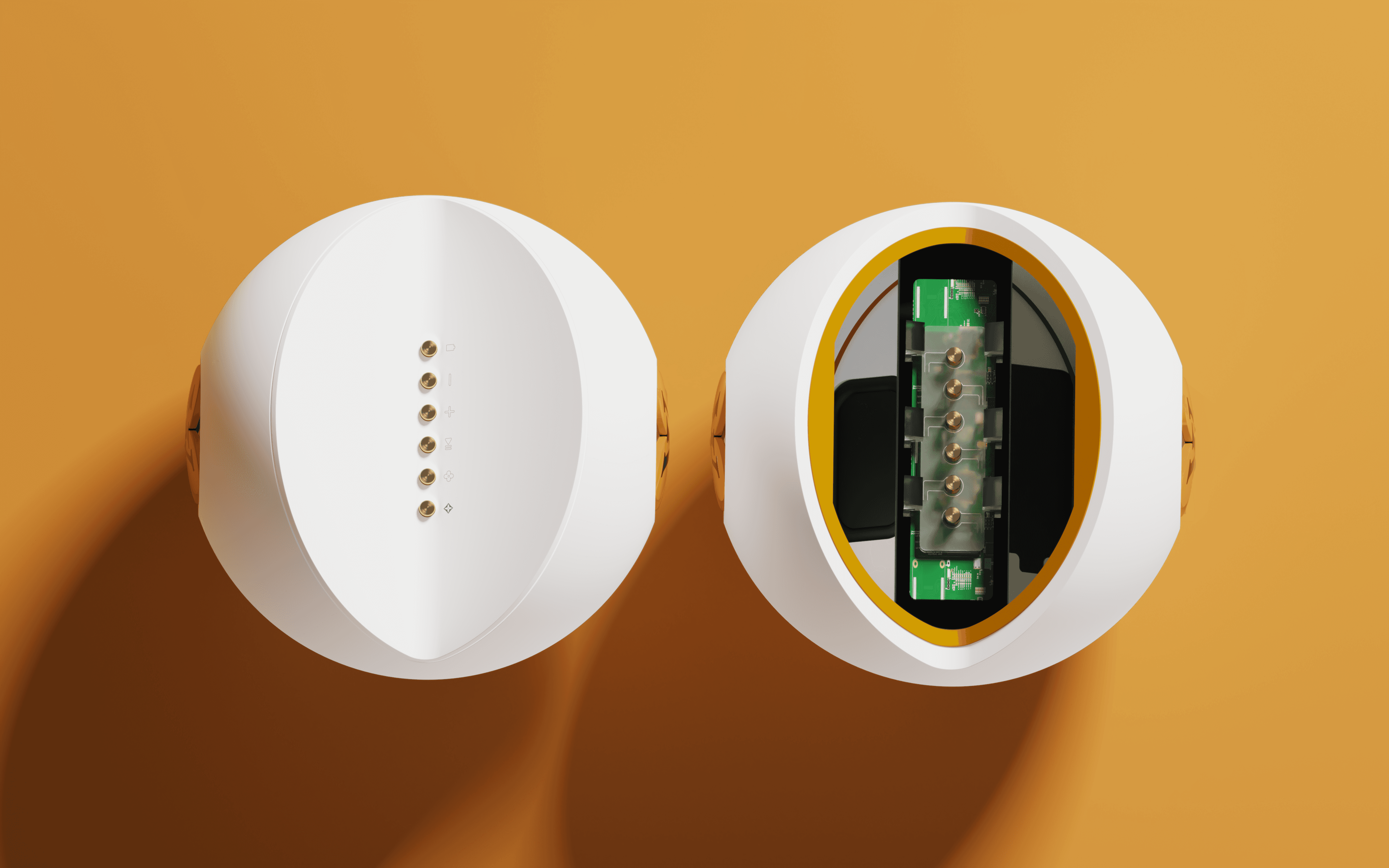

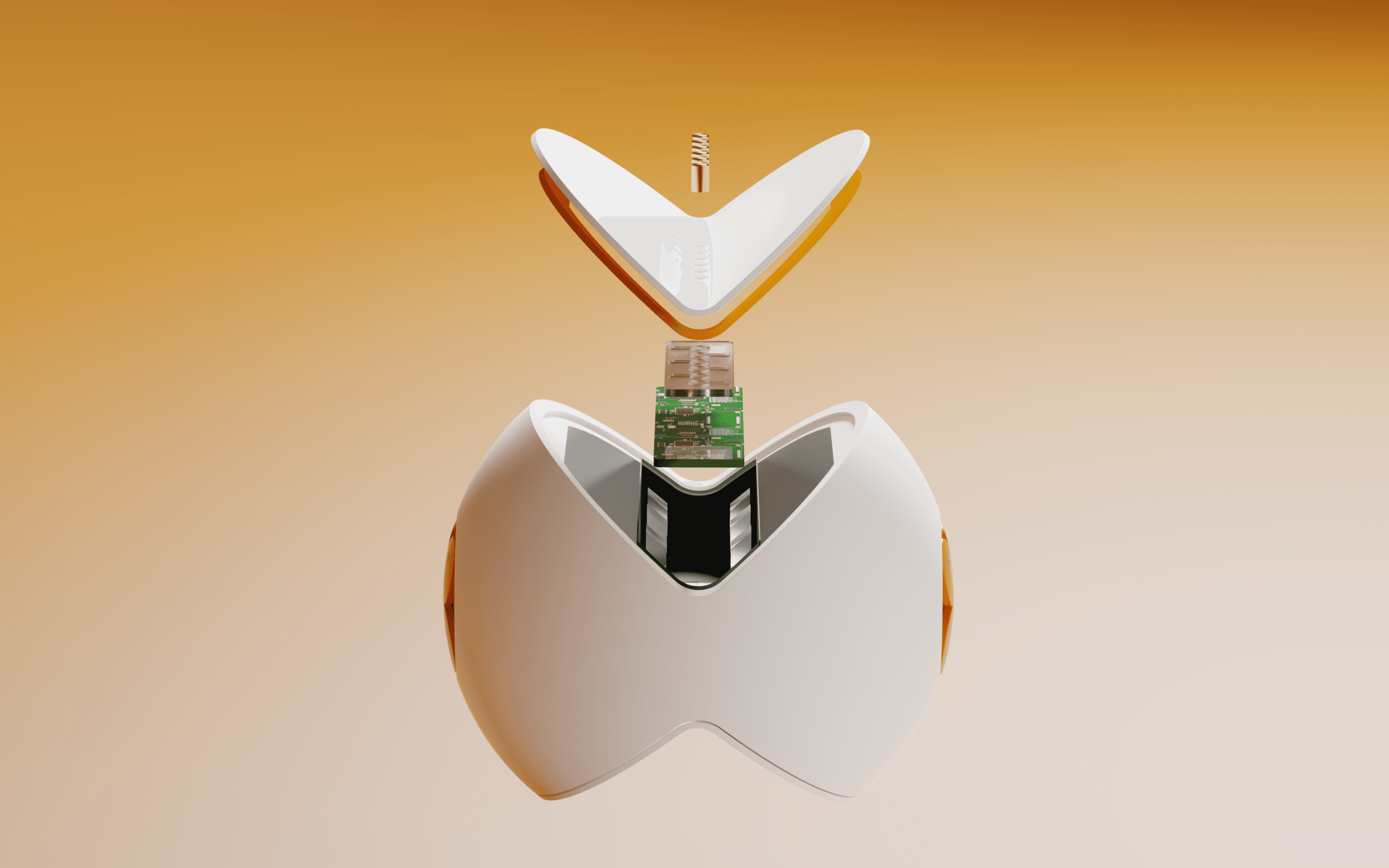

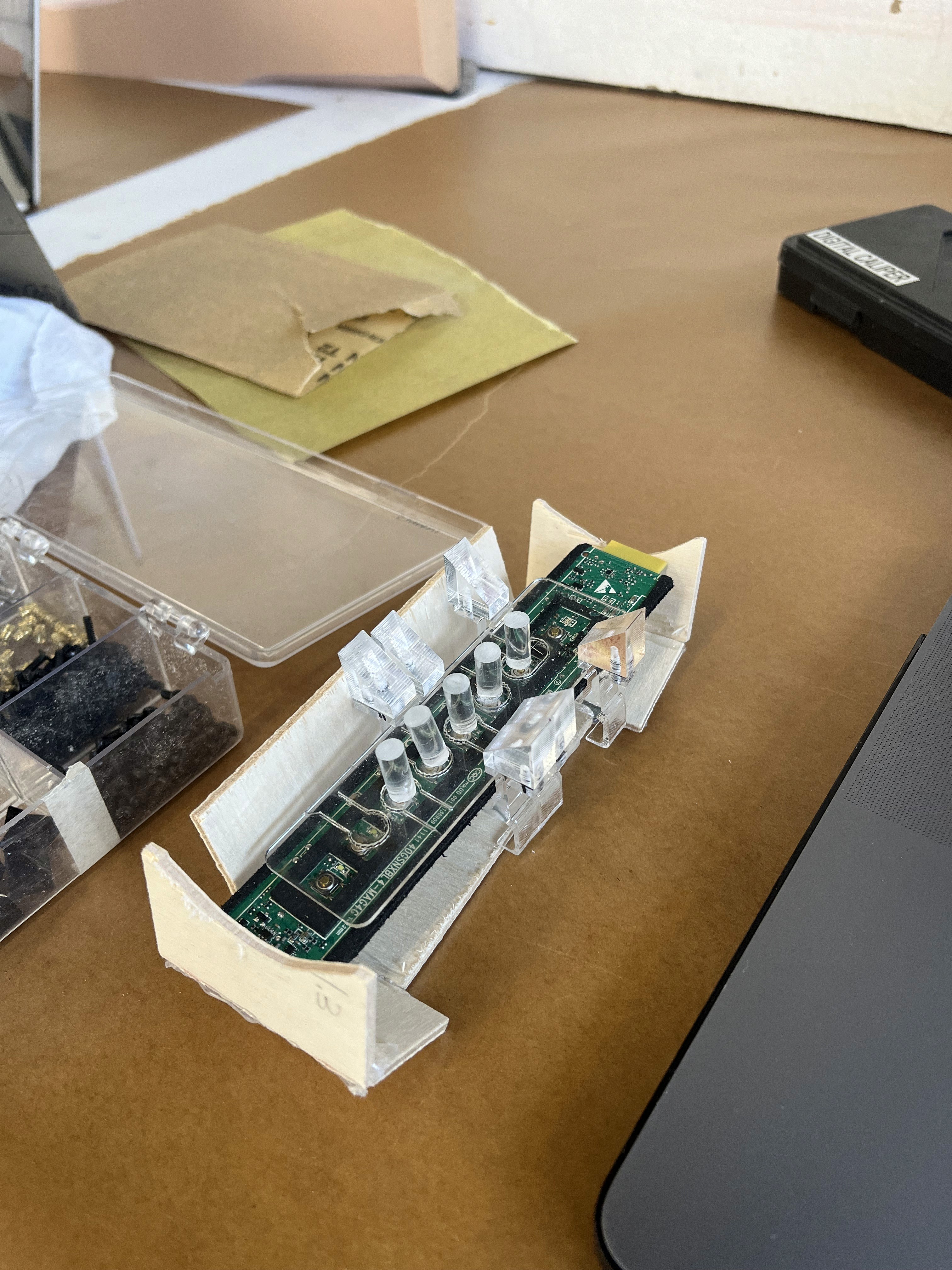

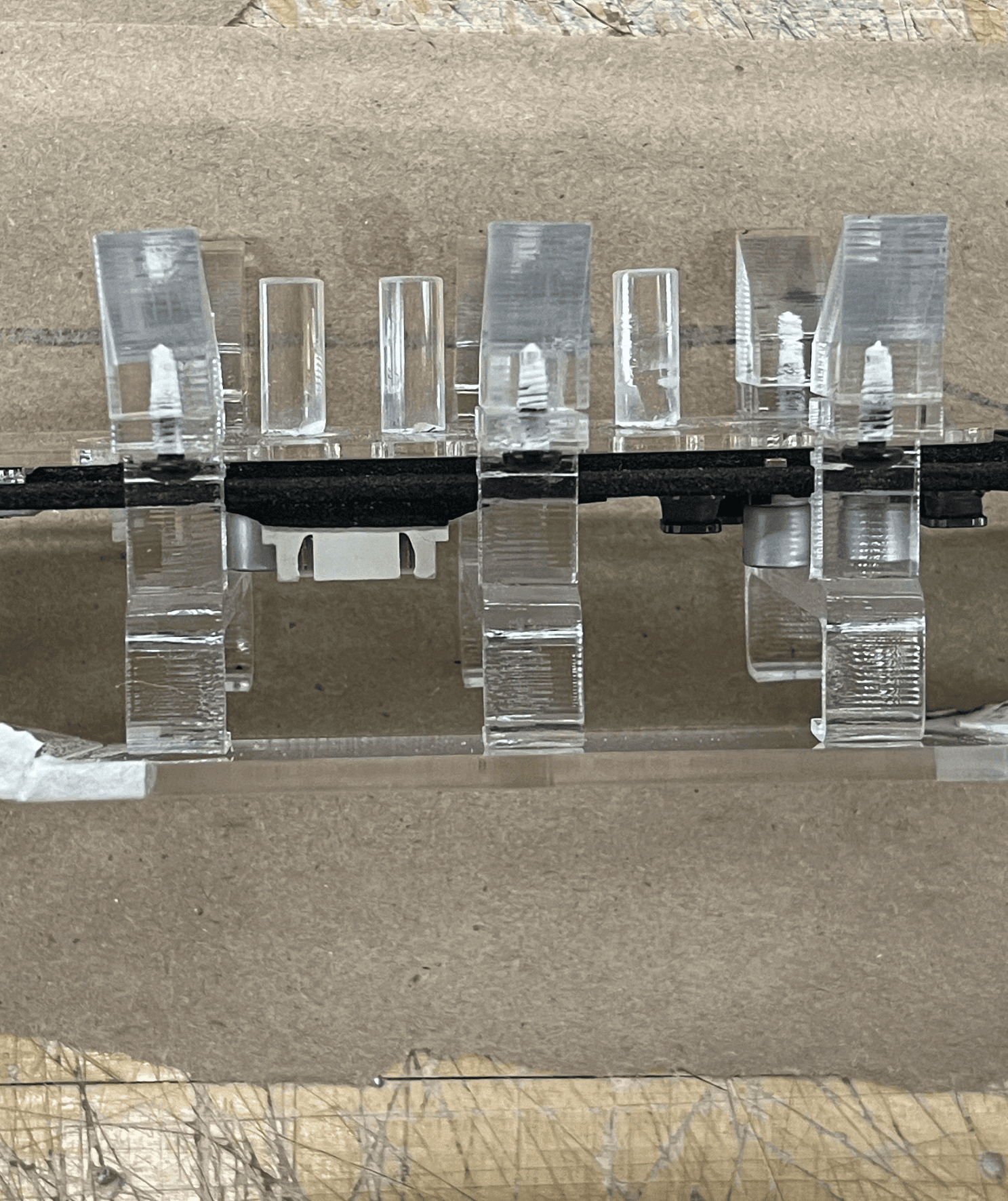

Spring board DESIGN AND FIT

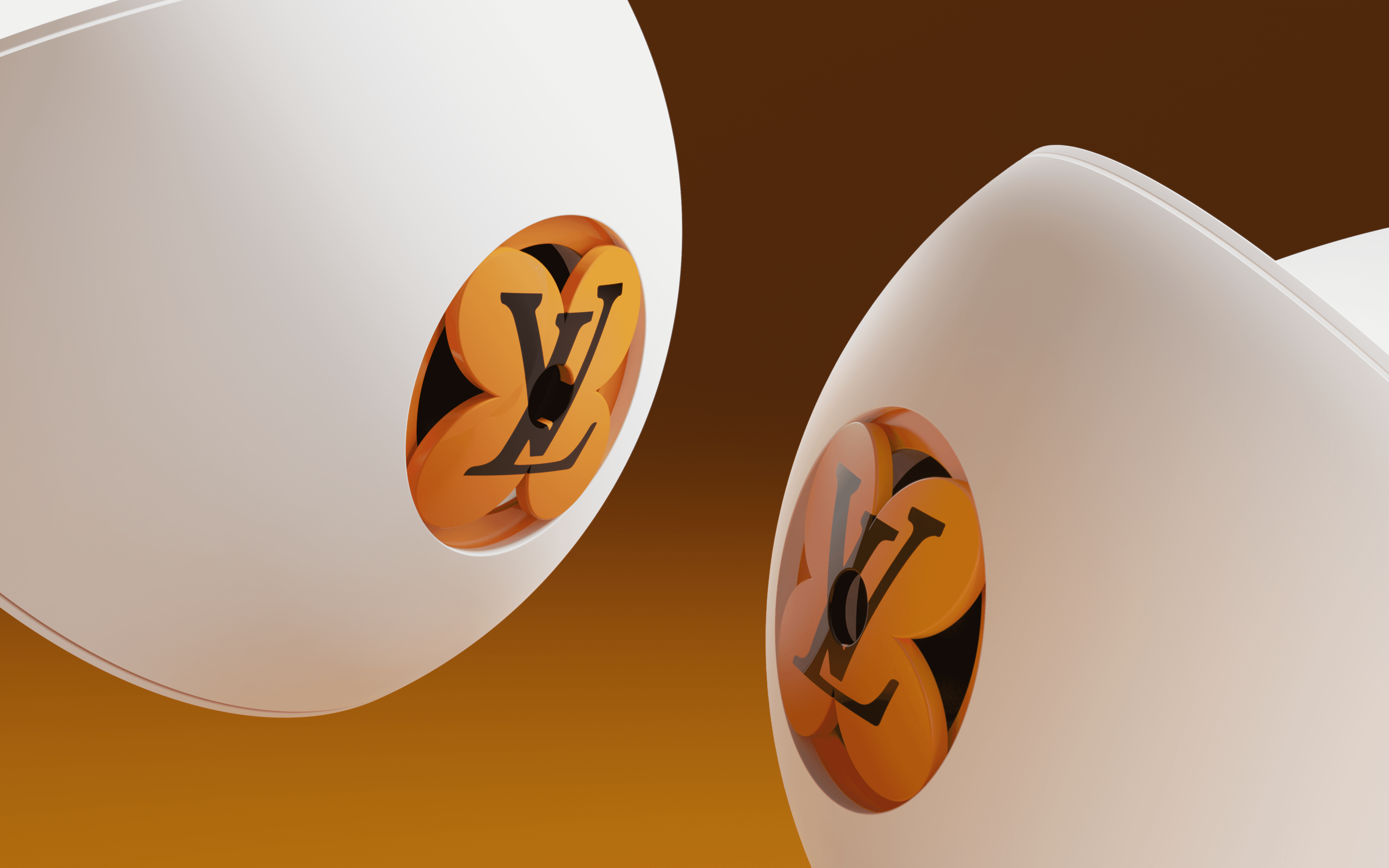

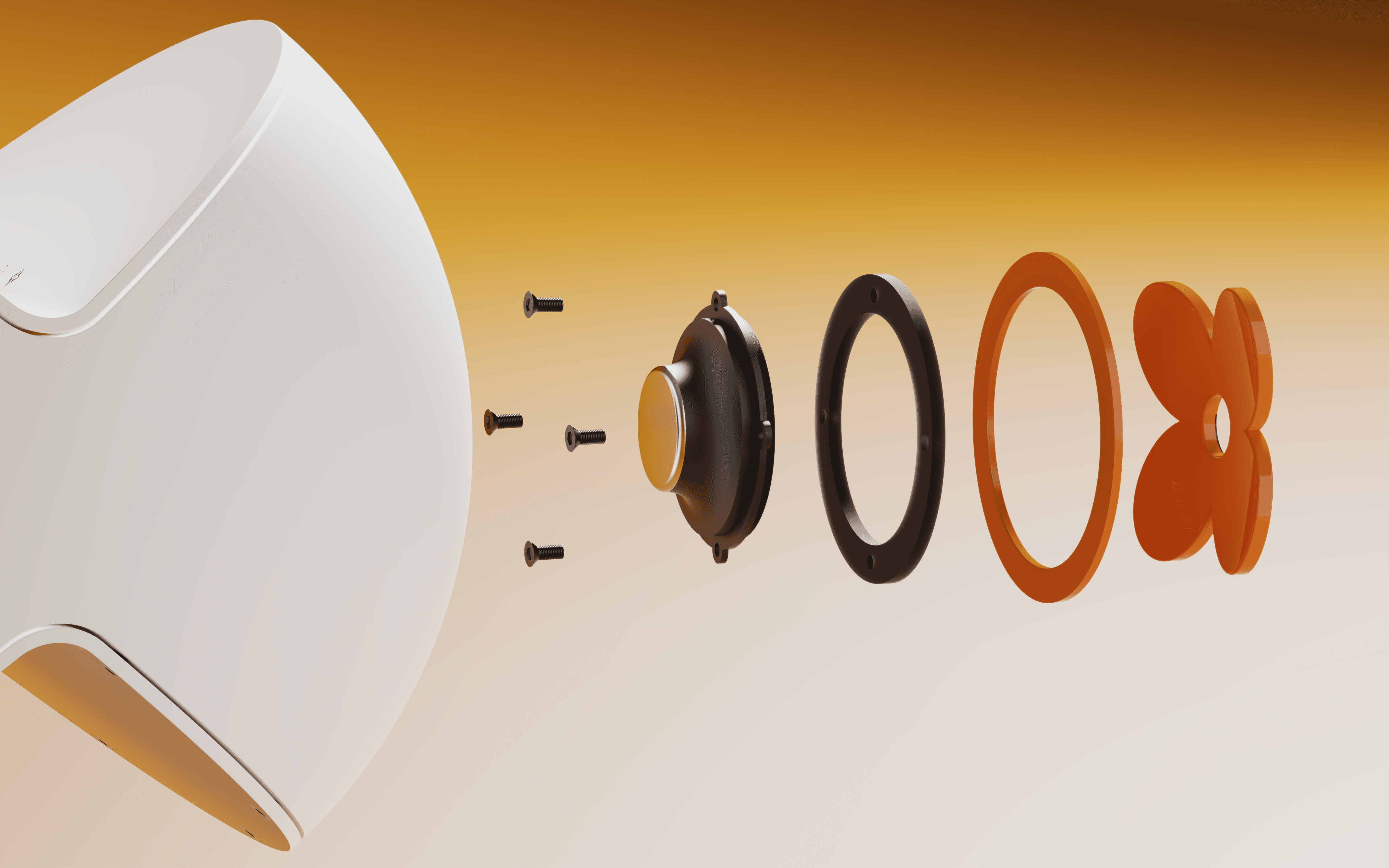

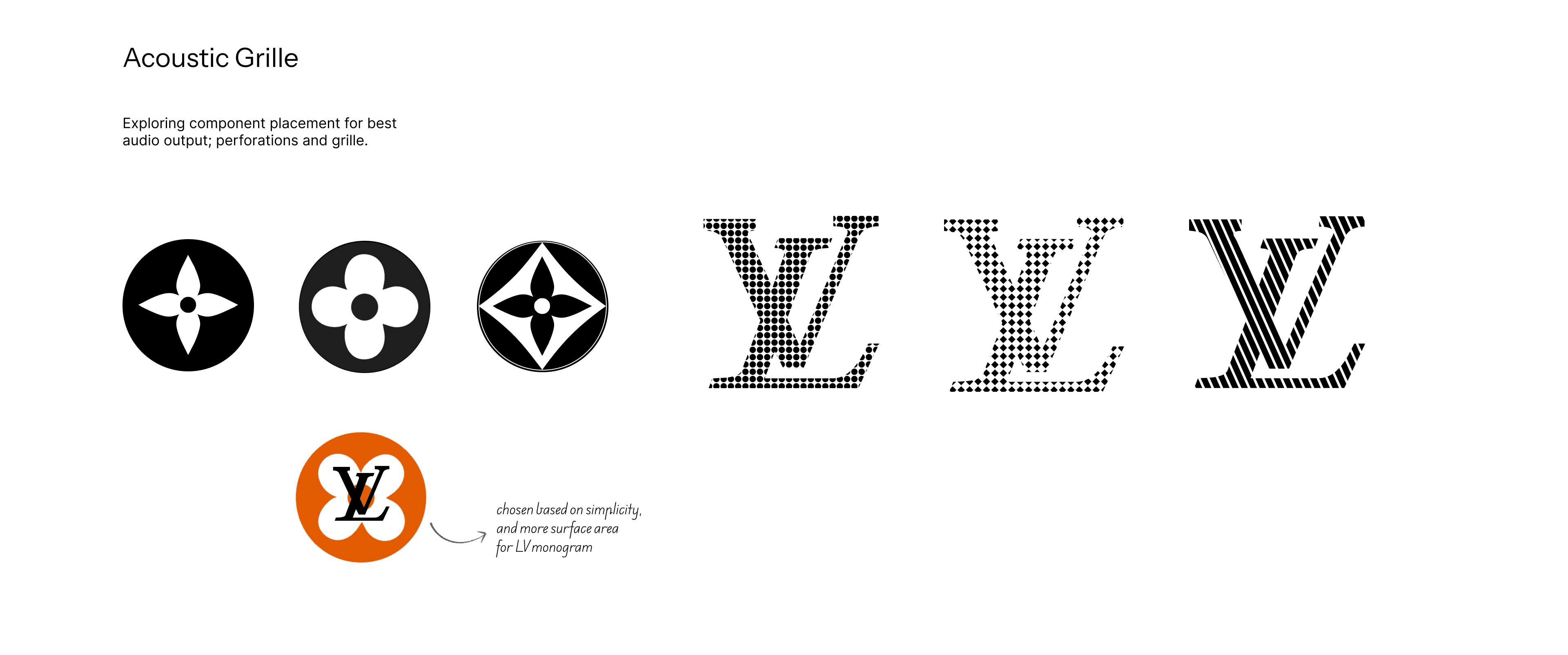

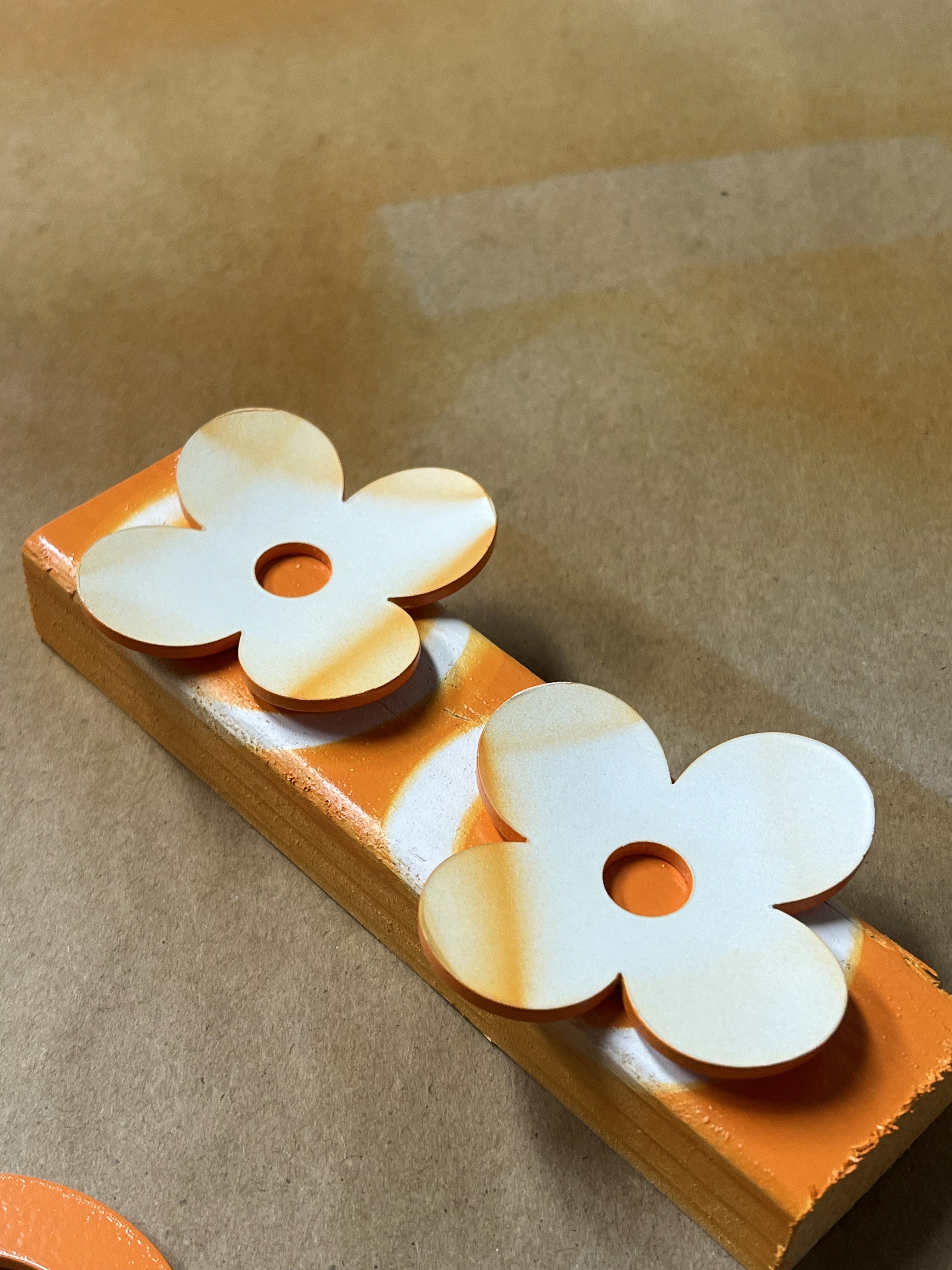

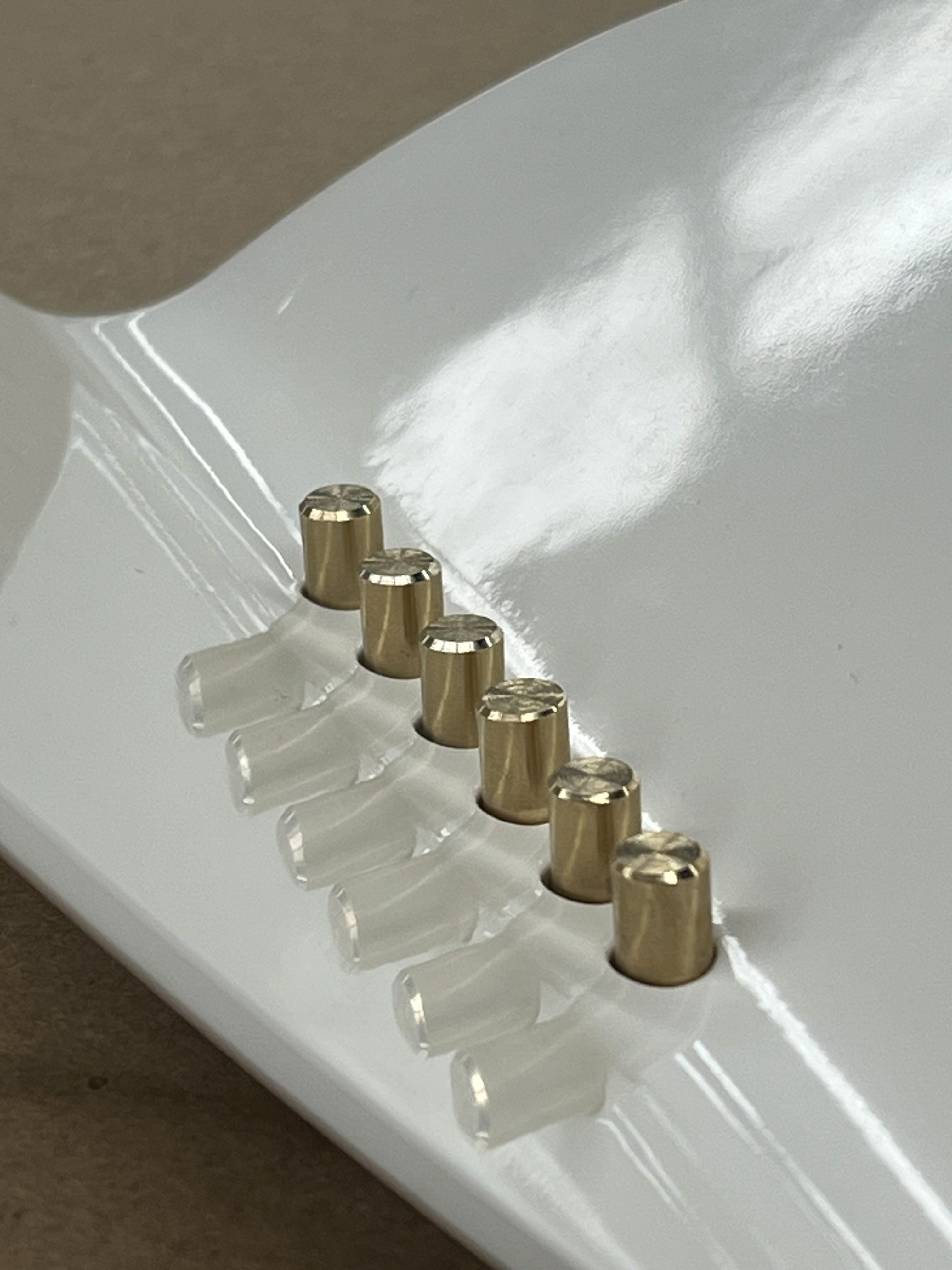

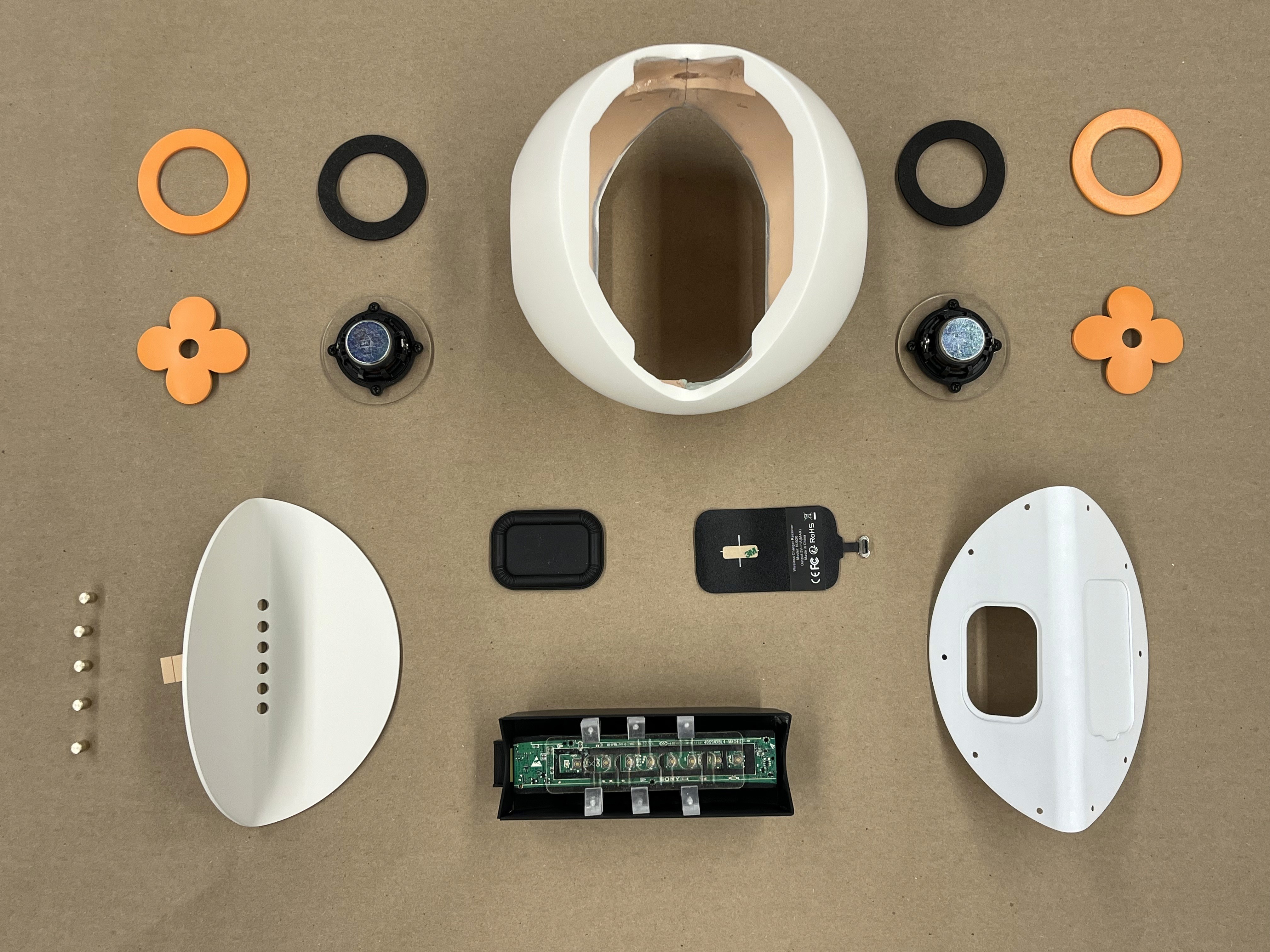

EXTERNAL PARTS - FUNCTIONAL AND DECORATIVE

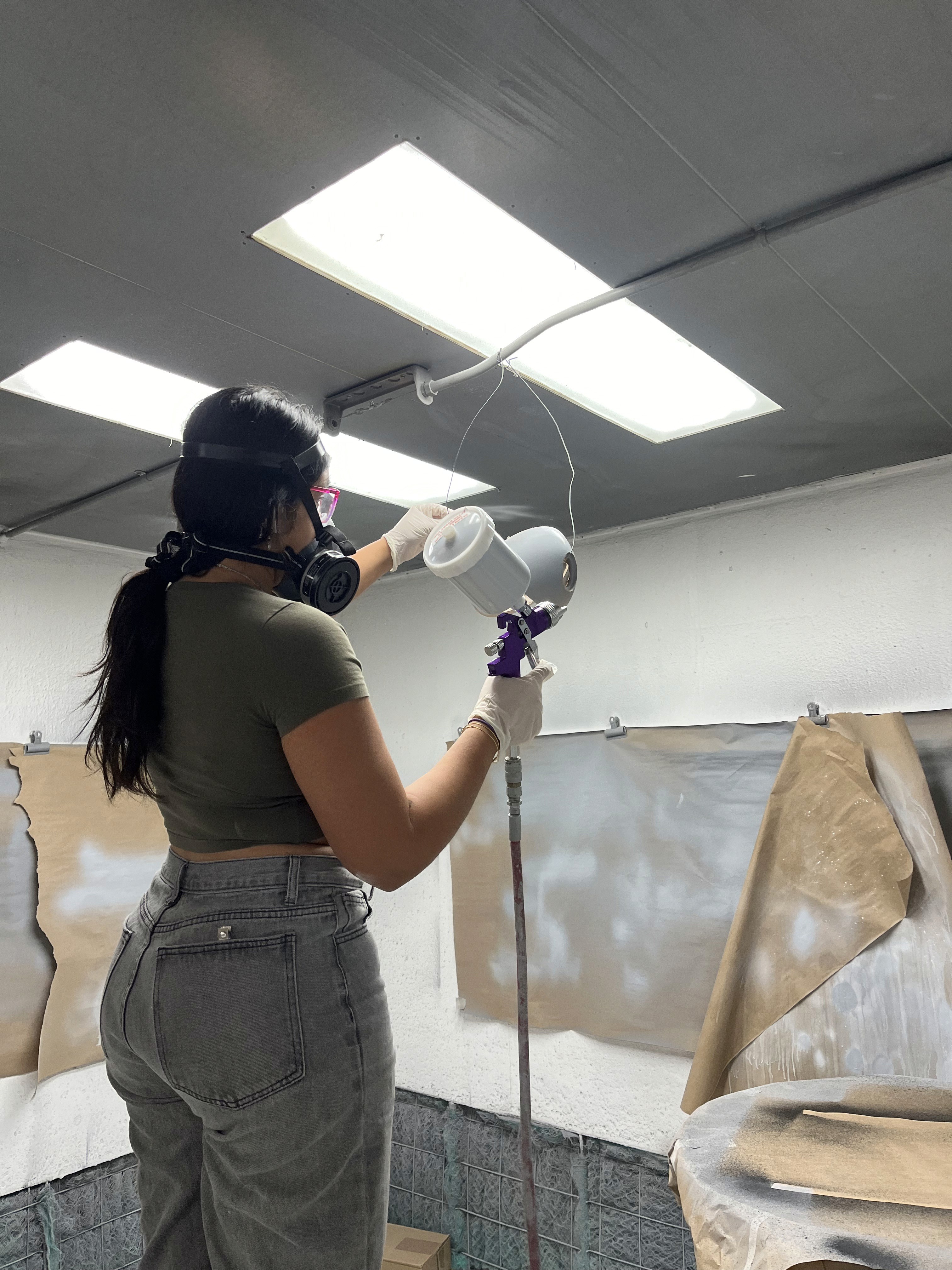

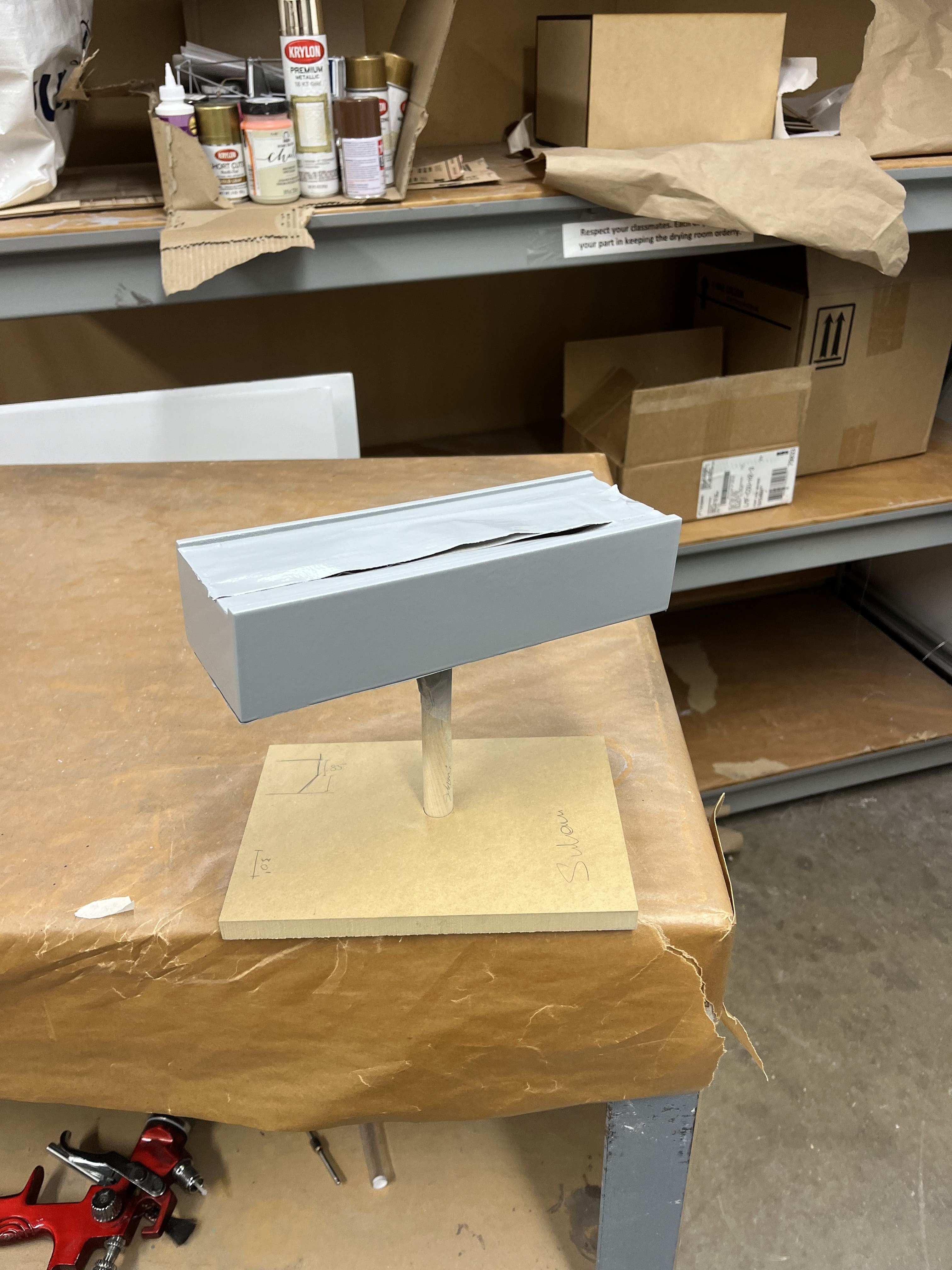

CMF - Automotive finish + GLOSS FINISH

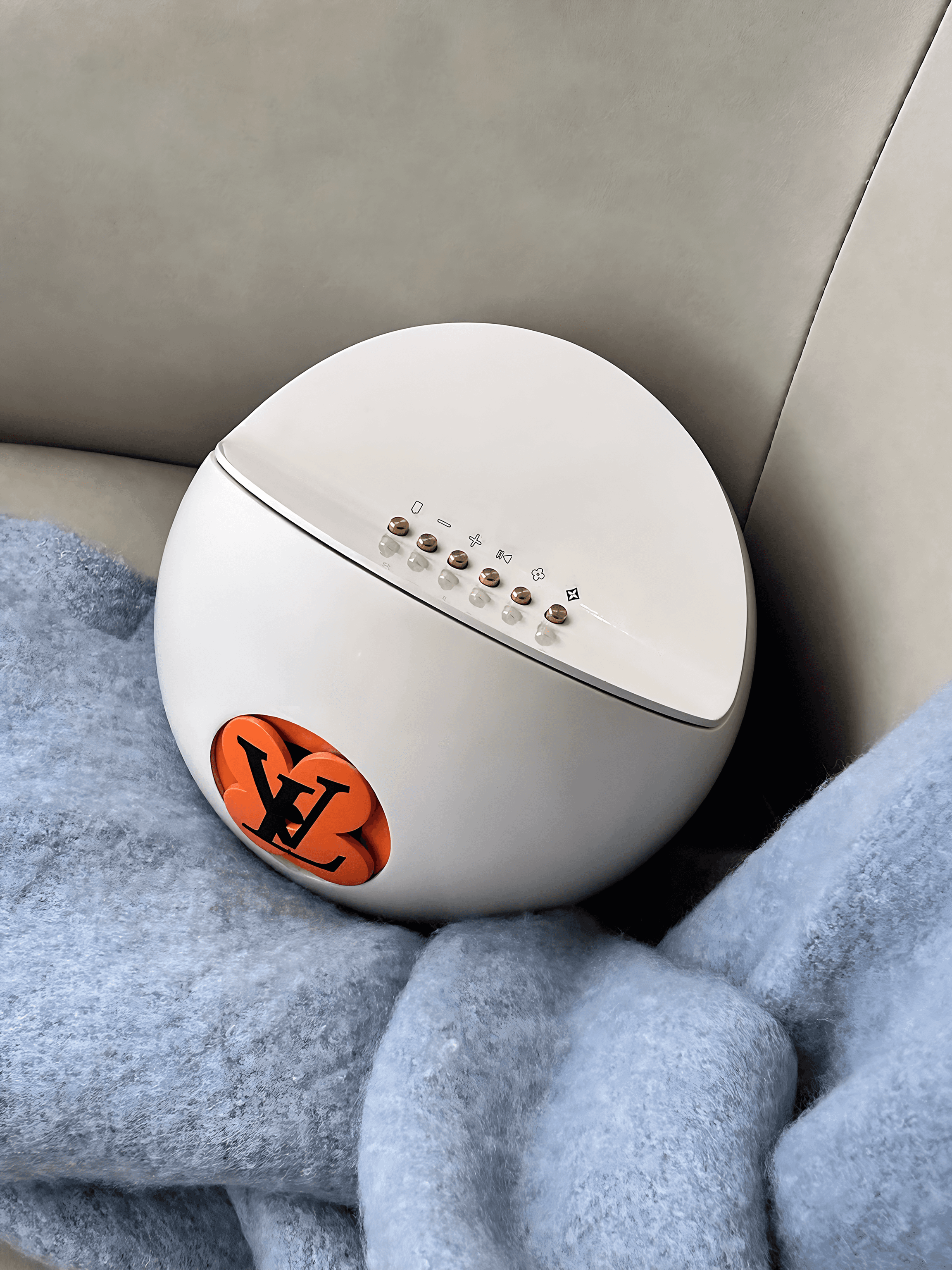

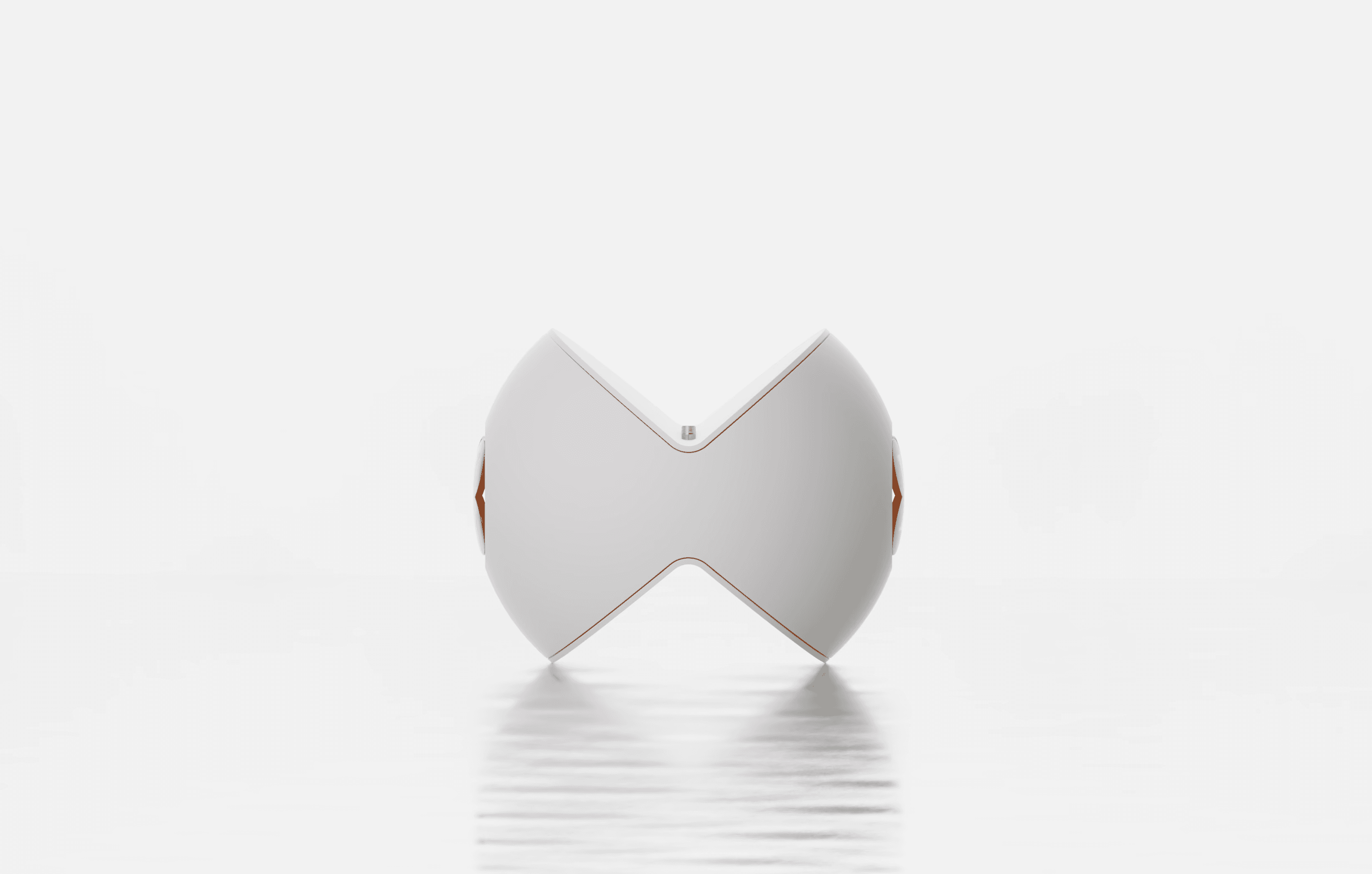

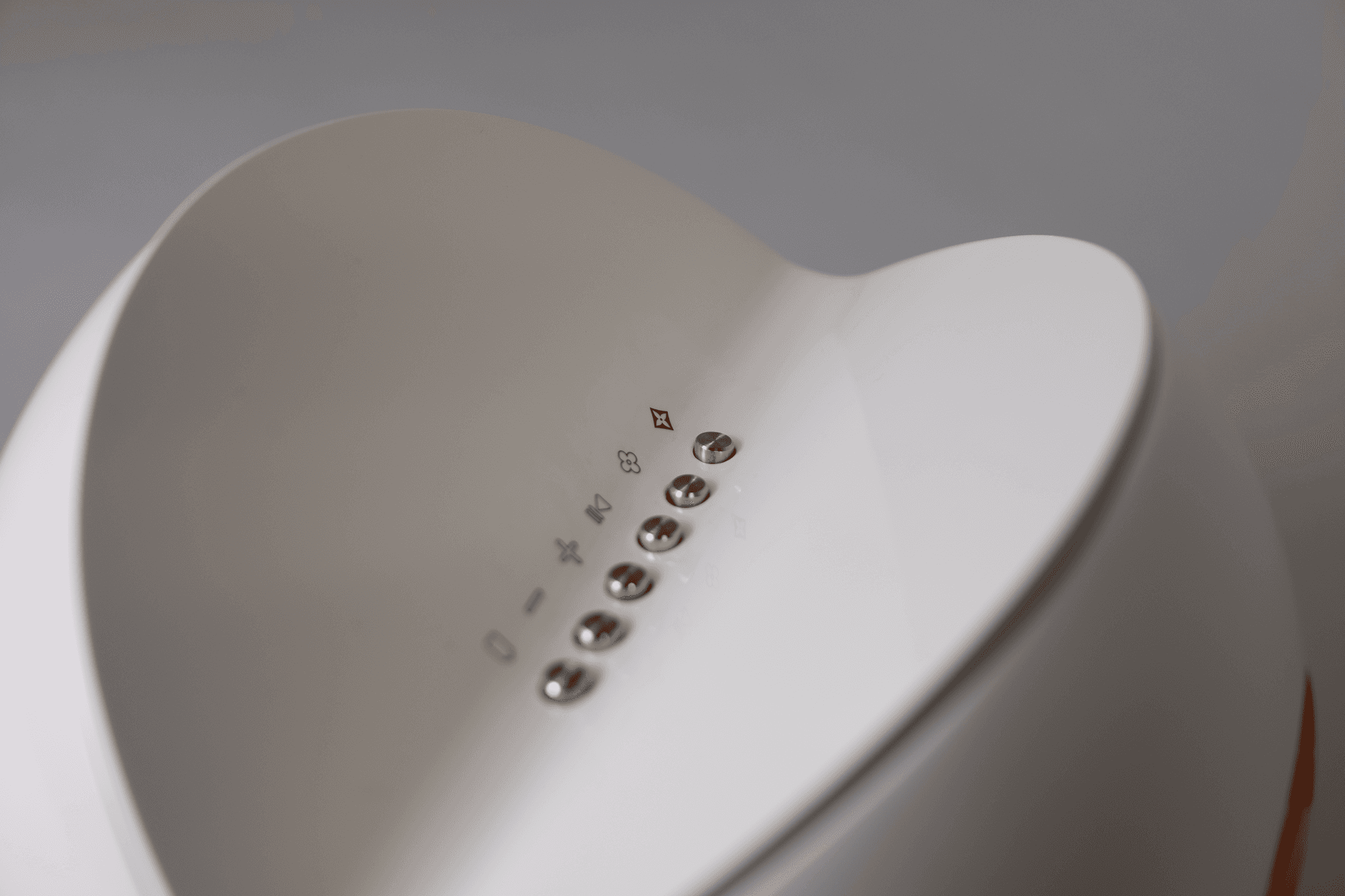

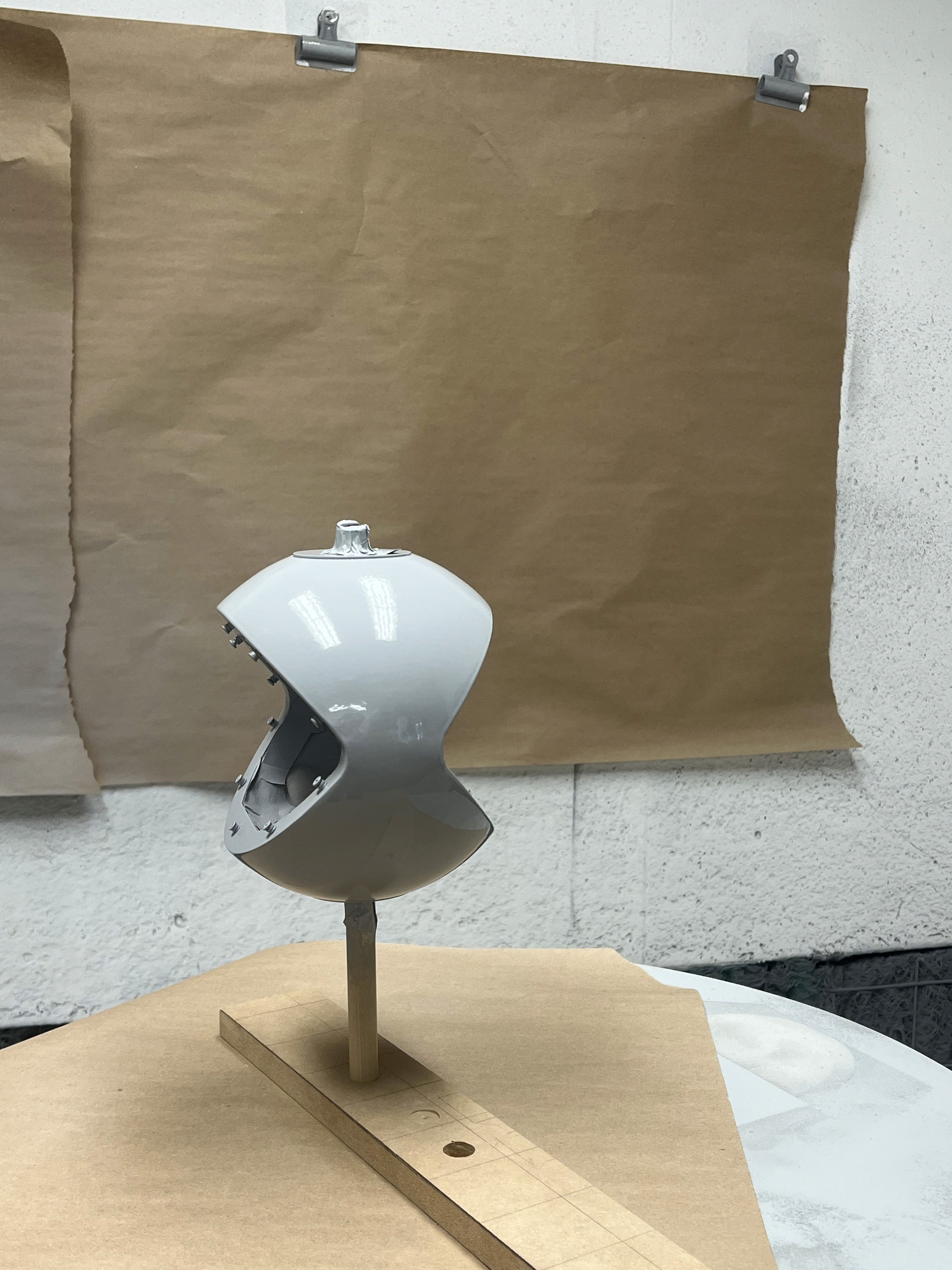

FINAL EXECUTION
FINAL EXECUTION
